smart water™
Wireless Water Tank Gauge

The Fuel Minder Store introduces the new Smart Water™ Wireless Water Level Monitoring System. It's a complete, simple solution for continuous monitoring and management of water and other fluid levels.

The Smart Water™ Wireless Water Tank Level Gauge measures the water or fluid level in tanks up to 13 feet deep (deeper with options) and up to 2.5 miles away (farther with options). Super easy installation and operation.

FEATURES:

The system includes a Desktop Touchscreen LCD Display Unit, a Tank Transmitter Unit, and a Level Sensor

 Desktop Touchscreen Display Unit

  • Shows tank level, alarms and 30-day history at a glance
  • Easy to operate high res 2.8" colour touchscreen display
  • Up to nine Tank Units can be monitored via one Display Unit
  • Also can be used to set up and control a Wireless Pump Controller
  • Can be mounted on a wall using the keyhole on the back of the unit

Tank Unit

  • Transmits the data measured by the sensor to the Display Unit
  • The Tank Unit needs to be line of sight to the Display unit location
  • High performance multi-directional antenna up to 4km / 2.5 miles line of sight (can be upgraded to increase range up to 10km / 6 miles
  • Tank Unit can be operated via Solar power/batteries or AC- no need to change batteries
  • Standard multi directional antenna for shorter distances - can be upgraded with Long/Ultra Long Ranger Directional Antenna to increase range
  • Strong weather resistant materials for durability
  • UV resistant marine grade plastic
  • Tank opening size required is 1 1/4"

Level Sensor (4m)

  • Measures liquid level in the tank using pressure
  • Different fluids such as Molasses and Urea can be monitored by setting the Specific Gravity (SG) of the fluid being measured
  • Super high quality materials and construction for long life
  • Precision locking connector
  • Automatic calibration
  • 4m/13ft cable length
  • 10m Sensor also available (sold separately)

VIDEOS

Smart Water Instructional Video

Smart Water Wireless Tank System



Supplemental Info

System Overview

Display Brochure

Tank Unit Brochure

FAQ

User Manual and Installation Instructions




Not finding what you need? We can put together a custom system for you. Please CONTACT US for more information.

The Smart Water™ Wireless Water Level Monitoring System

smart water

Complete system for monitoring tanks and cisterns remotely and wirelessly!




Display Unit

display

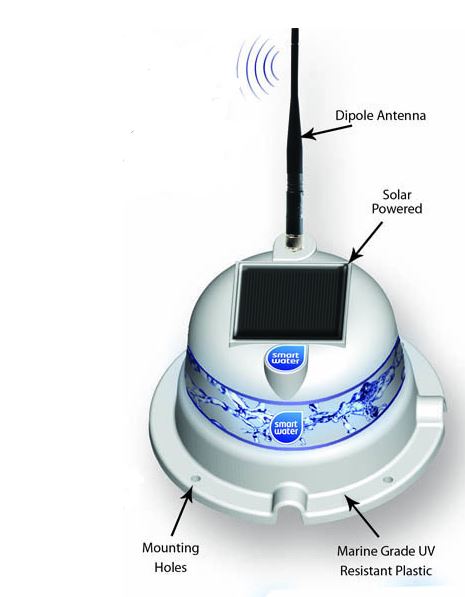

Tank Unit - Transmitter/Sensor with Both AC and Solar Battery Charger

smart water

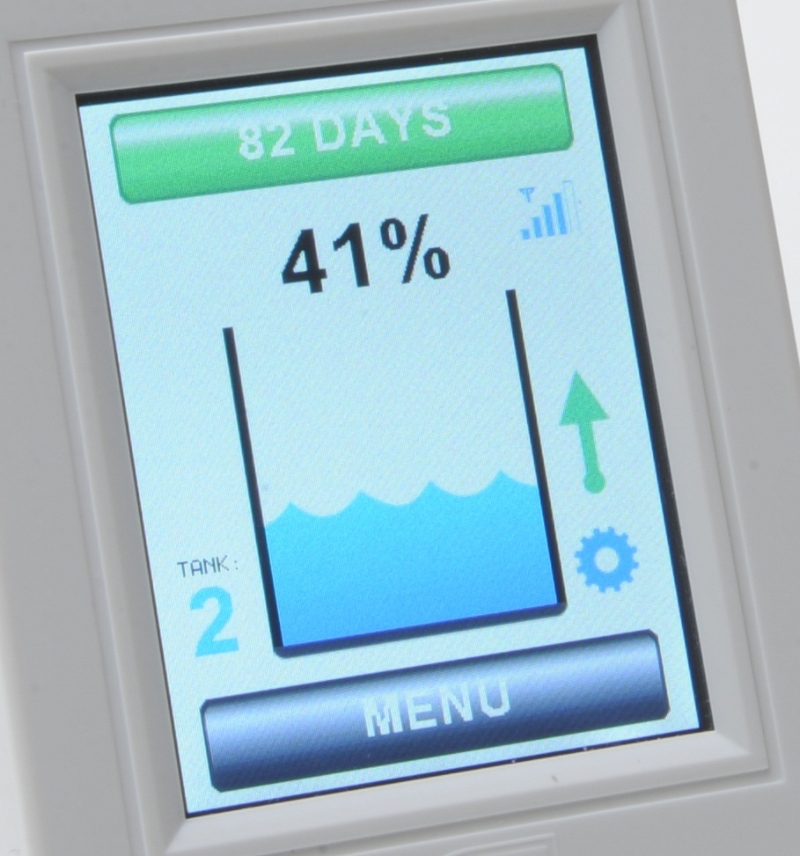

Displays

menu

Normal Mode ------ Alarm Mode-------- History

displayshistory

“Time to Empty” indication based on your actual water usage. Just like a trip computer in your car, the system will tell you how long you have until your tank water supply will run out!

• “ALERT” features for low days remaining and low tank level

• “ALERT” feature for abnormal usage warns of system leaks or any unusual water usage detected. The system will alert you if a water source/outlet has been left running or there is a system leak within 4 hours

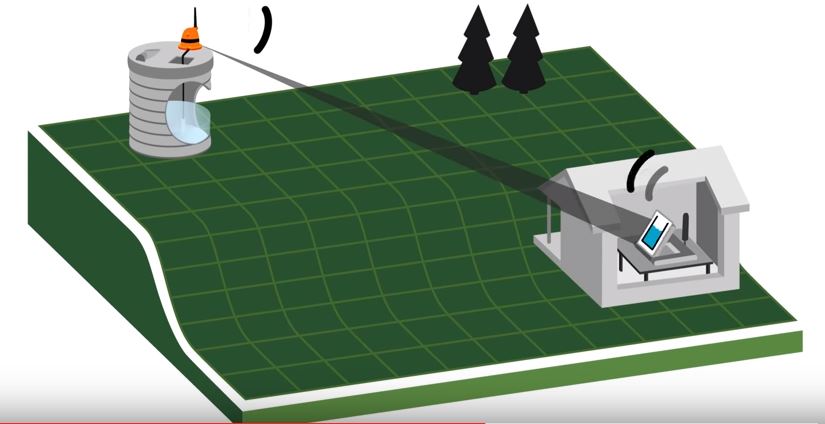

installation

Line of sight provides maximum range



Extremely Easy To Operate And Install




ORDER INFO

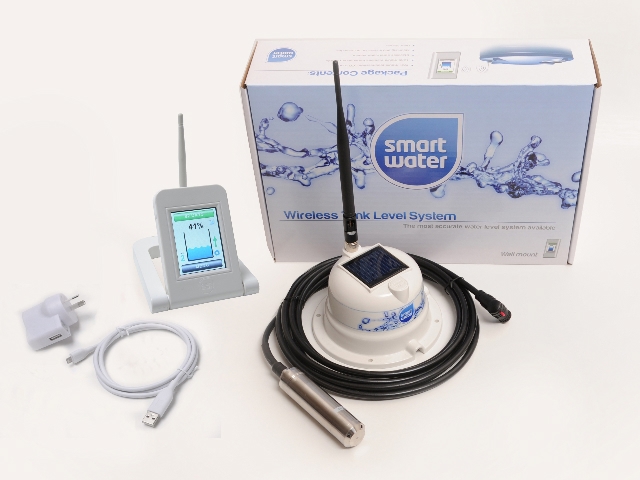

Smart Water™ Wireless Water Monitoring System - Desk Mount

smart water, cistern gauge, water tank gauge, wireless tank gauge, wireless cistern gauge, wireless water tank gauge, tank level gauge, tank level monitor

Item #SW810....$499

Everything you need to install a Smart Water desk mount tank level system in one convenient box. The kit includes a desk mount LCD, one wireless tank unit, standard antenna, one stainless steel sensor, mounting accessories and a comprehensive user guide. This kit is designed for users with ONE tank



ACCESSORIES AND OPTIONS

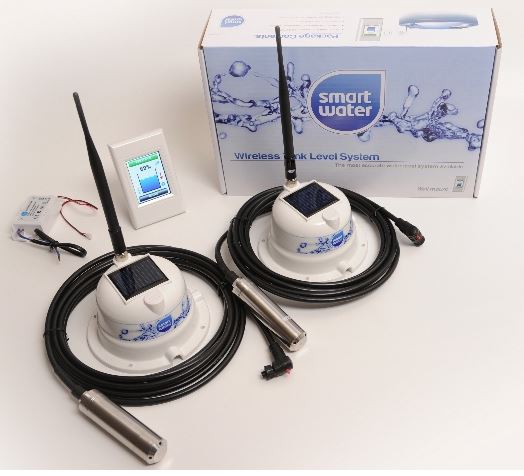

Smart Water™ Wireless Water Monitoring System - Wall Mount

smart water, water level gauge, cistern gauge

System Overview Brochure



Everything you need to install a Smart Water wall mount tank level system in one convenient box. The kit includes a wall mount LCD, one wireless tank unit, standard antenna, one stainless steel sensor, mounting accessories and a comprehensive user guide. This kit is designed for users with ONE tank

Item #SW810W

$499

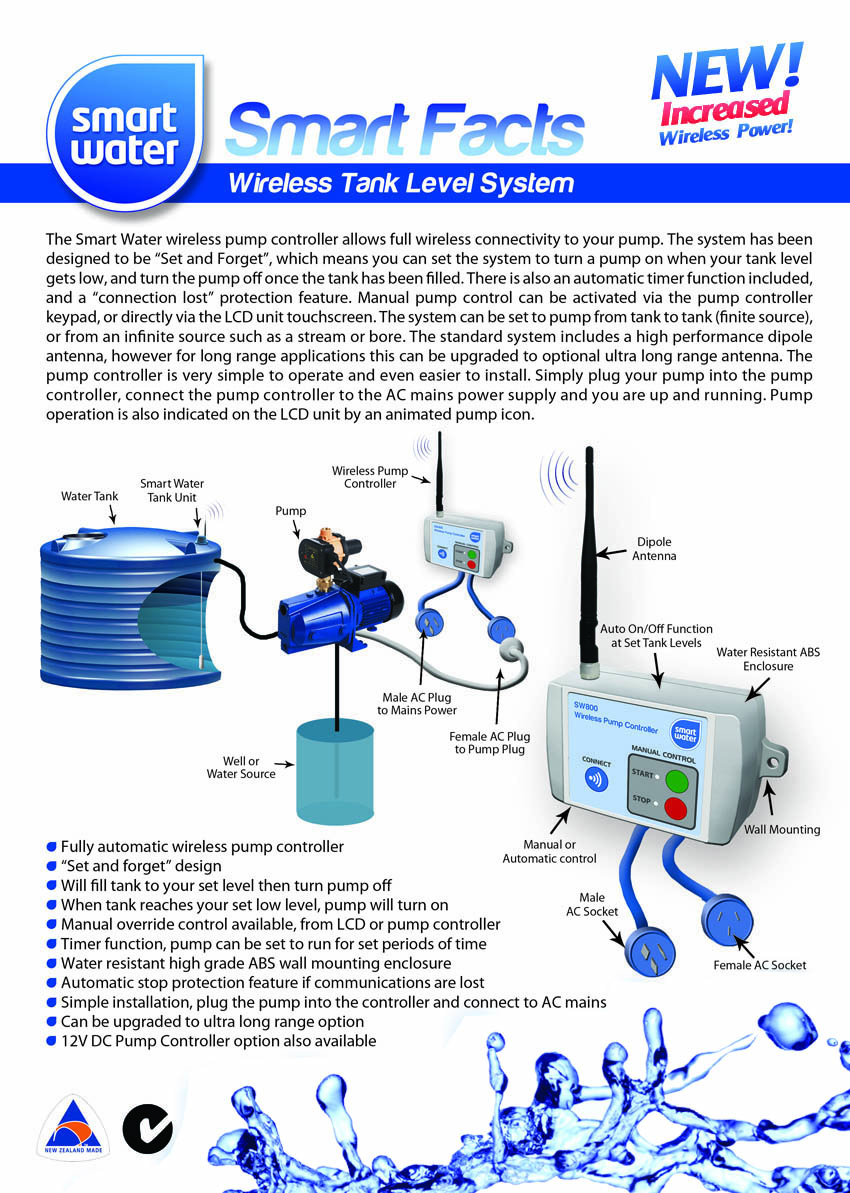

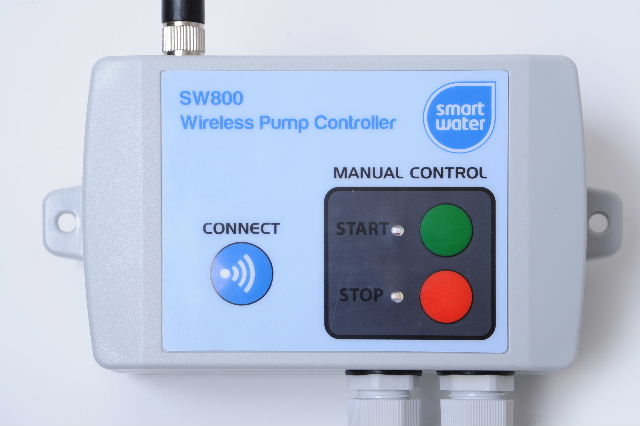

Smart Water SW800 12VDC Wireless Pump Controller*

pump

Pump Controller Brochure

Modified Installation Required*

*SEE INSTALLATION NOTE

The Smart Water SW800 12VDC Wireless Pump Controller will provide full automatic "set and forget" management for your pump. You can set the unit to turn your pump on and off at customised tank levels. Water can be pumped between tanks or from bore/stream water sources. Auto stop feature, loss of comms shutoff feature, automatic timer function all combine to make a high quality and very useful addition to your Smart Water system. The pump controller can be fully controlled from your existing LCD keypad. Please note that this version is designed for 12VDC applications only.

Modified installation required*

*SEE NOTE REGARDING INSTALLATION

Item #SW800-12VDC

$279

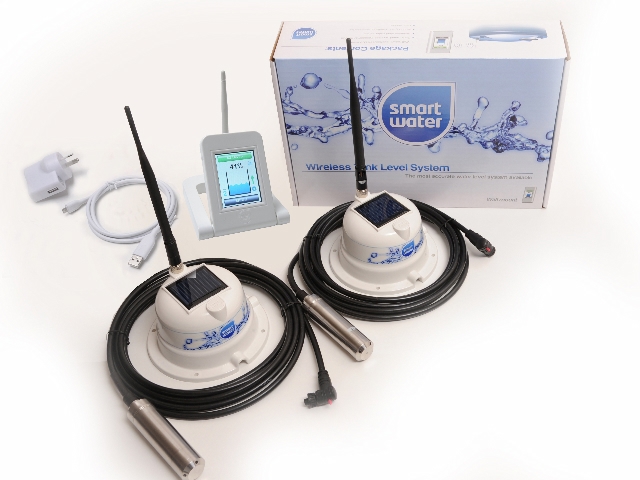

Smart Water SW800 2-Tank Desk Mounted Starter Pack

2 tank

Everything you need to install a Smart Water stylish desk mount tank level system in one convenient box. The kit includes a desk mount LCD, two wireless tank units, standard antenna, two stainless steel sensors, mounting accessories and a comprehensive user guide. This kit is designed for users with TWO tanks

Item #SW800-2TANK

$699

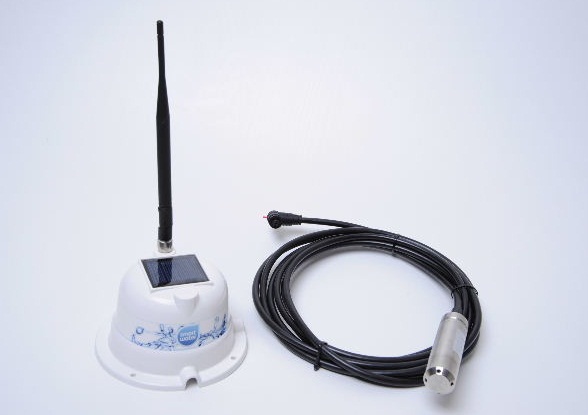

Smart Water SW800 Tank Unit Kit

tank unit

Tank Unit Brochure



Extra tank unit kit for the simple addition of another tank to your Smart Water system. Can be powered by AC or Solar/Battery power. The kit comes complete with all the necessary parts for an easy installation. Includes a Stainless Steel sensor, dipole antenna, mounting accessories and a comprehensive user guide

Item #SW800-TUK

$319

Smart Water SW800 Tank Unit Only

tank unit

Tank Unit Brochure



Tank unit only kit. This product includes an AC and battery powered, solar charged tank unit and antenna. There is no sensor supplied in the kit, and no mounting accessories.

Item #SW800-TUO

$209

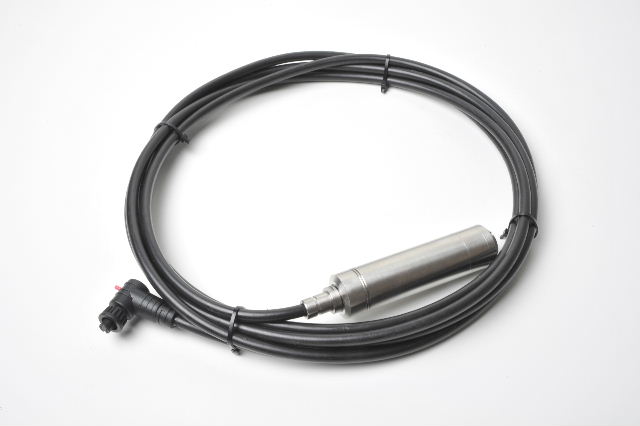

Smart Water SW800 10 Meter Sensor Cable

cable

Smart Water SW800 Stainless Steel sensor. Extended 10 metre length, super rugged polyethylene cable, 316 Stainless Steel, precision locking waterproof connector

Item # SW800-10M

$229

Smart Water SW800 Desk Mount Unit Antenna

antenna

High performance dipole antenna for use with the Smart Water SW800 stylish desk mount unit

Item # SW800-DMA

$29

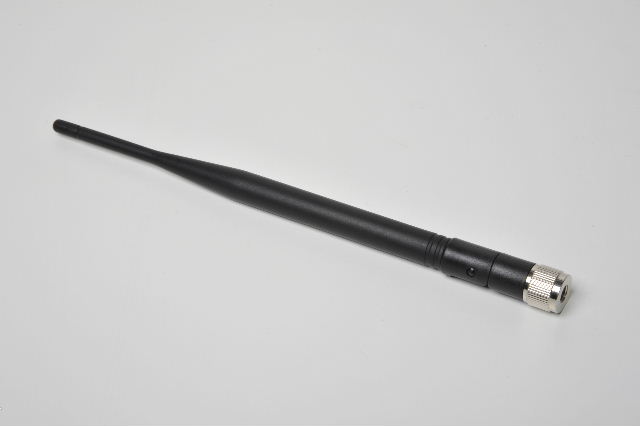

Smart Water SW800 Tank Unit Antenna

antenna

High performance dipole antenna for use with the Smart Water SW800 tank unit or wireless pump controller

Item # SW800-TUA

$29

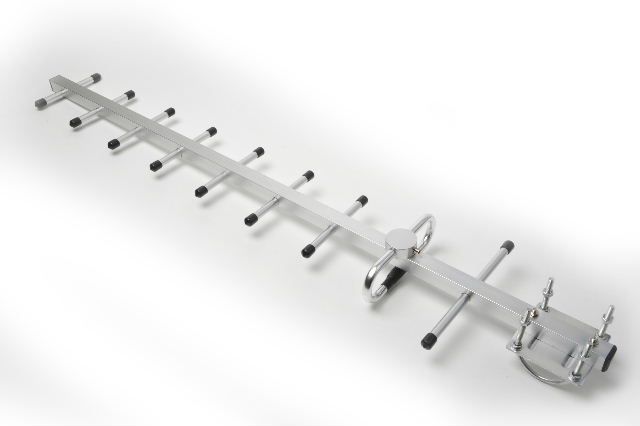

Smart Water SW800 Yagi Antenna-Economy Version

yagi

Smart Water SW800 economy version Yagi antenna. Measures 380mm in length and is made of the highest quality weather resistant materials. The Yagi Antenna is used when wireless range needs to be increased. Wireless range of up to 5km can be achieved with this antenna

Item # SW800-YE

$79

Smart Water SW800 Yagi Antenna-Ultra Long Range Version

yagi

Smart Water SW800 high performance Yagi antenna. Measures 800mm in length and is made of the highest quality weather resistant materials. The Yagi Antenna is used when wireless range needs to be maximised. Wireless range of up to 10km can be achieved with this antenna

Item # SW800-YULR

$99

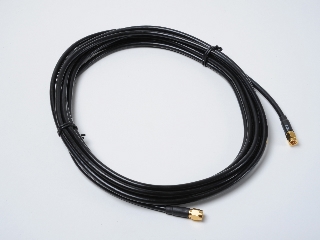

Smart Water SW800 Antenna Extension Cables

cable

0.5 Meter



cable

4 Meter



cable

10 Meter





0.5 Meter Extension Cable

Extension cable for use with the ultra long range Smart Water Yagi Antenna. 0.5M metre total length, SMA male to SMA male, 3u" Gold plated SMA connectors with high performance low loss RG58U cable

4 Meter Extension Cable

Extension cable for use with the ultra long range Smart Water Yagi Antenna. 4 metre total length, SMA male to SMA male, 3u" Gold plated SMA connectors with high performance low loss RG58U cable

10 Meter Extension Cable

Extension cable for use with the ultra long range Smart Water Yagi Antenna. 10 metre total length, SMA male to SMA male, 3u" Gold plated SMA connectors with high performance low loss RG58U cable







Item # SW800-C0.5

$26



Item # SW800-C4

$42



Item # SW800-C10

$72

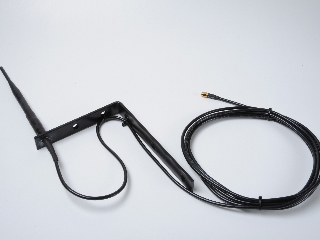

Smart Water SW800 Bracket Mount Dipole Antenna

bracket

Standard dipole antenna conveniently mounted onto a robust right angle bracket. Perfect for mounting an antenna outdoors on the side of buildings and pump sheds. Includes a high performance, low loss RG58U 4M cable

Item # SW800-BMDA

$96

Smart Water SW900 Wireless Active Repeater

repeater

The Smart Water Wireless Active Repeater allows for weak signals from distant tanks to be boosted. Perfect for long range and challenging installations where a reliable wireless link is critical. Solar powered with smart battery management and repeater logic are critical design factors that make this product a great addition to your Smart Water network.

Item # SW900-WAR

$489

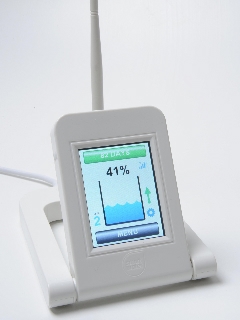

Smart Water SW800 Desk Mount LCD Display Unit (LCD Only)

lcd

Smart Water SW800 stylish desk mount touchscreen LCD unit for installations requiring an extra desk mount LCD unit. Accessories included in the kit are a high performance dipole antenna, power supply, USB cable and a comprehensive user guide

LCD Brochure

Item # SW800-LCDD

$209

Smart Water SW800 Wall Mount LCD Display Unit (LCD Only)

lcd

Smart Water SW800 Wall mount touchscreen LCD unit for installations requiring an extra wall mount LCD unit. Accessories included in the kit are a high performance dipole antenna, mounting kit, power supply and a comprehensive user guide

LCD Brochure

Item # SW800-LCDW

$209
