mopeka
Bluetooth/WiFi Propane Remote Tank Monitors

Never run out of propane unexpectedly!! Monitor the LP gas level in your tank accurately by ultrasound technology and monitor it with your smartphone or tablet via Bluetooth or WiFi signal (with Mopeka WiFi Bridge)!

Available for Tanks Up To 2000 gal!



Simply attach the magnetic sensor to the bottom of your tank and use a downloaded app on your mobile device for initial calibration and then monitoring of your tank level.

Fuel tank level is updated every 5 seconds up to 200 feet of the sensor. Mobile app can support multiple tank monitors!


A Bluetooth Remote Display Gauge is available for mounting inside providing local display.

tank check

For those who are not Smart Device users, the Mopeka Check LED Display works with two Mopeka Check sensors (Pro or Standard), and allows you to locally monitor the levels in one or two separate propane cylinders.


NEW!! Now the Mopeka Check WiFi Bridge enables you to also get tank level data on your Smartphone or any web enabled device!

Mopeka WiFi Bridge

The Mopeka Check Gateway connects your Mopeka Check sensor to the cloud via your local WIFI router.

Also works with Alexa and Google Home system voice commands.

With the gateway in place, your tank level is continuously updated to the Mopeka cloud. The Mopeka app will then retrieve the tank level from the cloud if the sensor is not within range of your phone/tablet.

So, you can check your tank level no matter where you are located!  Great for vacation homes, RV parks, and gas companies!  Add a WiFi Bridge to your Mopeka and get your tank level data online!

NO MONTHLY FEES!!

See ORDER INFO below


MOPEKA FEATURES:

  • Monitor multiple tanks with mobile devices
  • Sensor magnetically mounts to bottom or top of tank (depending on model)
  • Tank fuel level is updated every 5 seconds
  • Sensor communicates to mobile device or monitor locally
  • Mopeka Pro Check Sensor works on tanks up to 2000 gallons
  • Average battery life is 4 - 6 years, depending on usage and temperature conditions
  • UL, UCL, ATEX CERTIFICATIONS:Class 1, Division 1, Group D Class 1, Zone 1, Group IIA - no tank penetration
  • Simple to install - no need fore a technician
  • 3 year warranty

MOPEKA INTRODUCTION VIDEO

The Mopeka Bluetooth/WiFi LPG Remote Tank Monitors

Mopeka TD40Mopeka Pro Plus

Mopeka Pro Check




Three Mopeka Systems to Choose From:


Mopeka Pro Check Sensor - Monitors a single tank on your Bluetooth or WiFi enabled device (with Mopeka WiFi Bridge)

lpg tank gauge

The Mopeka Pro Check Sensor works on horizontal or vertical tanks up to 1000 gallons and diameters up to 48".

Allows you to monitor the level of propane using the free Mopeka Check App on your smartphone or tablet.

See ORDER INFO below


Mopeka TD40 Sensor - BLE

Mopeka

Sonar Tank Monitoring Solutions are the most reliable and accurate way to measure Propane, Butane, LPG, water, beverages and other liquid volumes in both pressurized and non-pressurized tanks. The TD40 can work on tanks up 16' high and communication via BLE (Long Range Bluetooth)

See ORDER INFO below


Mopeka Pro Plus Sensor-Residential (Long Range Bluetooth)

Mopeka Pro Plus Sensor

The PRO + Sensor combines all the best technology of our ultrasonic sensing for the best sensor performance ever, using long range Bluetooth communications to monitor tanks from the Mopeka App.  Approximately 3x the range of a normal Bluetooth sensor, this sensor is ideal for tanks located a long distance from the house. Can also be used in conjunction with a Mopeka IoT Wifi Bridge to monitor tanks when outside of Bluetooth range.


Monitoring the Sensor with a Smart Device requires downloading the free App. Add a WiFi Bridge to your Tank Sensor and get your tank level data online!

DOWNLOAD THE MOPEKA APP  FOR APPLE

DOWNLOAD THE MOPEKA APP  FOR ANDROID


The  Mopeka App allows connection to multiple sensors, so that you can monitor as many tanks as you want!


MopekaIOT Co-Pilot App is designed to be used with the Mopeka Patented line of Sonar Sensors such as the Pro Plus and TD40 portfolio of sensors. The Co-Pilot application can measure the volume and usage of both pressurized and non-pressurized liquids to tell you the current tank liquid volume real-time, anytime. Whether Propane, Butane, Oil, Anhydrous, Water or any other liquid can be measured using our sensors when paired with the MopekaIOT Co-Pilot App.

The Mopeka Pro Plus and TD40 portfolio of sensors are magnetically or physically connected to the bottom of your pressurized Steel and Aluminum Tanks or to the Top of your non-pressurized tanks. They will send telemetry via a global SIM connection to the AWS Cloud which is then communicated to the MopekaIOT Co-Pilot App in real-time. The Co-Pilot App allows the user to Set-up and Configure the sensors during Installation phase, and then manage and set periodic reporting and alarms of the liquid levels within the tanks being measured.


See ORDER INFO below

See Instructions/Manuals/Videos Below

(Bulk/Commercial models for larger tanks and for underground tanks are available - Please Call)


ORDER INFO

Mopeka Pro Check Sensor-LPG (Steel Tanks and Cylinders)

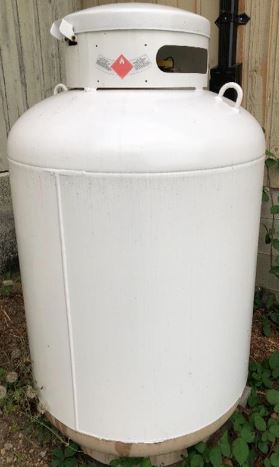

For LPG Tanks: All steel LPG tanks up to 1000 gallons, horizontal or vertical cylinders

lpg tank gauge

Cat. #024-2002....$59

The PRO Sensor combines all the best technology of our ultrasonic sensing for the best sensor performance ever.
LPG Tanks: All steel LPG tanks up to 1000 gallons, horizontal or vertical cylinders.
Mounting: Mounts to bottom by magnets.
How to read level via Bluetooth: Free Mopeka Check APP on your smartphone or tablet; Or Mopeka Check LED Display.
Also compatible with Mopeka Wifi Bridge, allowing remote reading of sensor using APP.
Power: CR2032 Battery
This package includes 1 Pro sensor only.
NOTE: This sensor is sold with tank spacers to be used on 20, 30 and 40 LB DOT Cylinders.

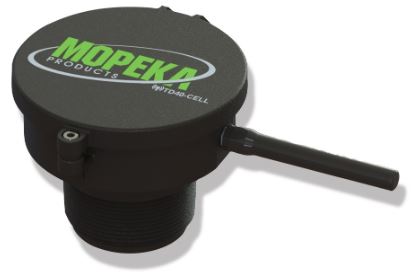

Mopeka TD40 Sensor - BLE

Sonar Tank Monitoring Solutions are the most reliable and accurate way to measure Propane, Butane, LPG, water, beverages and other liquid volumes in non-pressurized tanks. The TD40 is top mounted and can work on tanks up 16' high and communication via BLE (Long Range Bluetooth).  For any tank type or orientation.

Mopeka TD40 Sensor

Cat. #MOTD40...$159

AVAILABLE SOON!

UL, UCL, ATEX CERTIFICATIONS: Class 1, Division 1
                                                            Group D Class 1
                                                            Zone 1, Group IIA

OPERATING TEMPERATURE RANGE:  -50° TO 60°C
                                                                         -55° TO 140°F

DEFAULT COMMUNICATIONS:  Global SIM 4G LTE
                                                      CAT M1, NB-IoT
                                                               Long-range Bluetooth

BATTERY LIFE/TYPE:  4-6 years, replaceable/Energizer Lithium AA

3-year Mfr. warranty

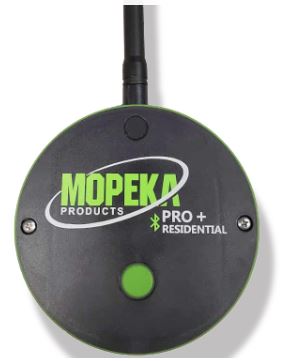

Mopeka Pro Plus Sensor-Residential (Long Range Bluetooth)

The PRO + Sensor combines all the best technology of our ultrasonic sensing for the best sensor performance ever, using long range Bluetooth communications to monitor tanks from the Mopeka App.  Approximately 3x the range of a normal Bluetooth sensor, this sensor is ideal for tanks located a long distance from the house. Can also be used in conjunction with a Mopeka IoT Wifi Bridge to monitor tanks when outside of Bluetooth range

Mopeka Pro Plus Sensor

Cat. #MOPROPLUS...$149

AVAILABLE SOON!

LPG Tanks & Single-walled Non-Pressurized tanks: All steel and aluminum LPG tanks up to 2000 gallons, horizontal or vertical cylinders; above ground only.
Mounting: Mounts to bottom by magnets.
How to read level: Free Mopeka C0-Pilot APP on your smartphone or tablet.
Power: 2 AAA (Energizer Ultimate Lithium only, included)

UL, UCL, ATEX CERTIFICATIONS: Class 1, Division 1, Group D Class 1, Zone 1, Group IIA

TANK SIZE: < 2000 gallons & Diameters 48″ and below

OPERATING TEMPERATURE RANGE: -50° TO 60°C
-55° TO 140°F

DEFAULT COMMUNICATIONS: Global SIM 4G LTE
CAT M1, NB-IoT
Long-range Bluetooth

BATTERY LIFE/TYPE: 4-6 years, Replaceable/Energizer Lithium AA

3-year Mfr. warranty

Includes 1 Sonic Grease packet.

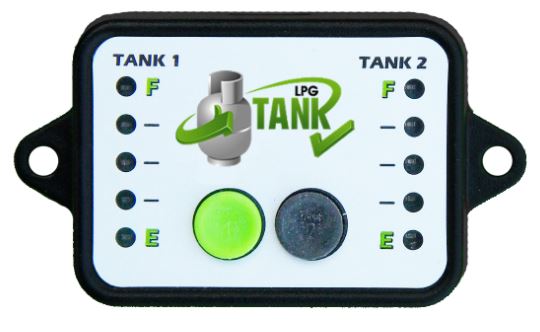

Mopeka Check Wireless LED Display

propane tank gauge, centeron, remote propane tank level monitor, lpg tank level gauge, wireless propane gauge, wireless lpg gauge, lpg tank level monitor, wifi propane gauge, cellular propane gauge

Cat. #024-1004....$42

Need a local display of tank level in addition to, or instead of Smartphone access?  Mopeka Check Monitor works with two Mopeka Check sensors (Pro or Standard), and allows you to monitor the levels in two separate propane cylinders. Programmable for 20, 30, 40, and 100 lb cylinders. Each side is independent and thus may be programmed for different sizes. Power: CR2032 Battery







































.

Mopeka WiFi Bridge

Mopeka WiFi Bridge

Cat. #024-3000...$45

The Mopeka Check Wifi Bridge connects your Mopeka Check sensor to the cloud via your local WIFI router. Also works with Alexa and Google Home system voice commands. With the bridge, your tank level is continuously updated to the Mopeka cloud. The Mopeka app will then retrieve the tank level from the cloud if the sensor is not within range of your phone/tablet. So, you can check your tank level no matter where you are. Great for vacation homes, RV parks, and gas companies. Powered by USB-C cable & power cube (included).

NO MONTHLY FEES!

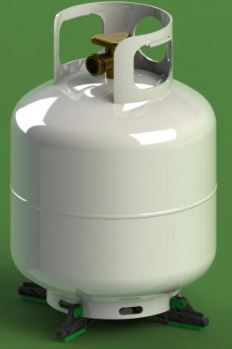

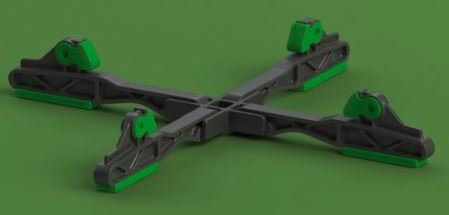

Mopeka Tank Anchor

propane tank gauge, centeron, remote propane tank level monitor, lpg tank level gauge, wireless propane gauge, wireless lpg gauge, lpg tank level monitor, wifi propane gauge, cellular propane gauge propane tank gauge, centeron, remote propane tank level monitor, lpg tank level gauge, wireless propane gauge, wireless lpg gauge, lpg tank level monitor, wifi propane gauge, cellular propane gauge

Cat. #024-5001....$9

The Mopeka Tank Anchor is a folding tank stand.  It’s a great alternative to those bulky and tall tank stands found in most stores.   Protects your car and floor surfaces from the rust and grim that builds up on cylinders.

The Tank Anchor can also be used in conjunction with a standard sensor to provide space for the sensor, and improved wireless range.  So it’s a nice alternative when replacing lost aluminum spacers.

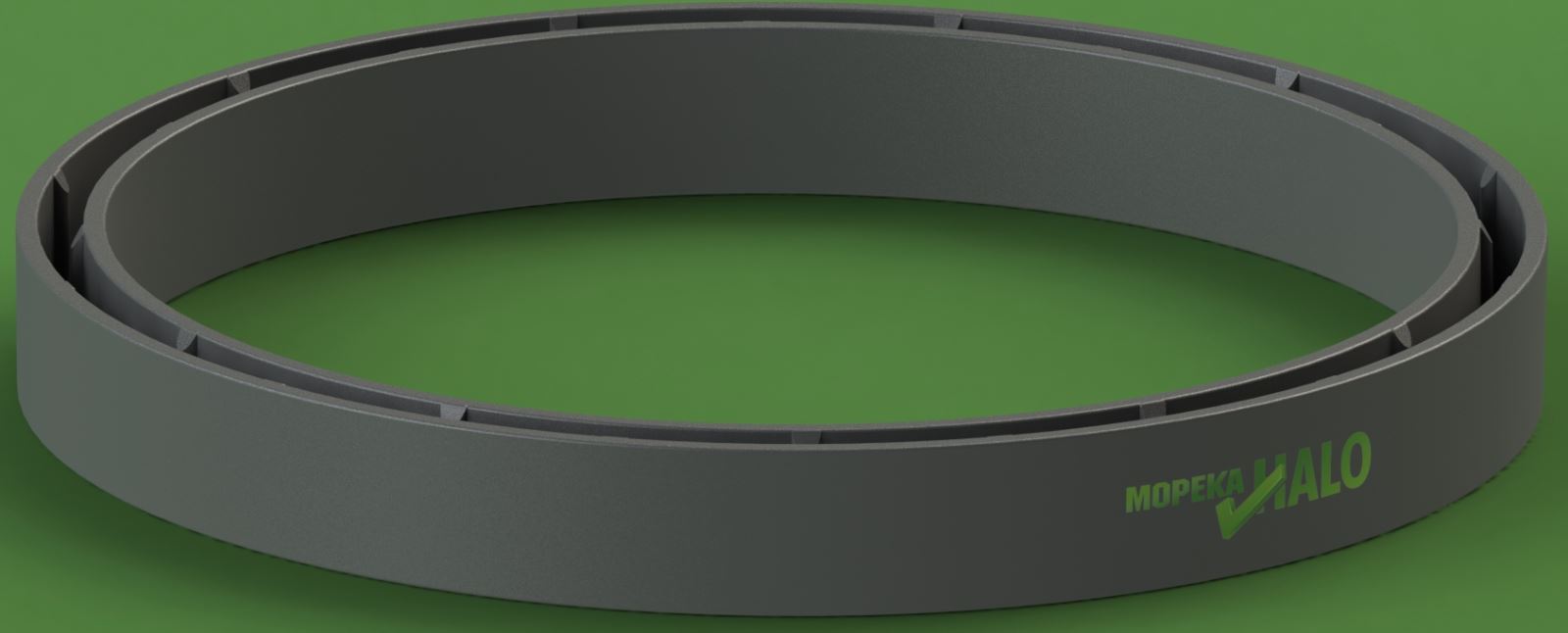

Mopeka Tank Halo

propane tank gauge, centeron, remote propane tank level monitor, lpg tank level gauge, wireless propane gauge, wireless lpg gauge, lpg tank level monitor, wifi propane gauge, cellular propane gauge

Cat. #024-5002....$15

The Mopeka Halo is a thermoplastic rubber foot ring for standard cylinders:  20, 30, and 40 lb (5, 7.5, and 10 gal) DOT cylinders

Protects your car and floor surfaces from the rust and grim that builds up on cylinders.

Halo also provides the benefit of providing the space and improved wireless range when used with a standard sensor.  Great replacement for lost aluminum spacers.

Need extra tank spacers? ALUMINUM TANK SPACER FEET

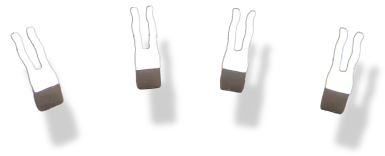

Mopeka Tank Check Spacers

Cat. #024-1005....$12 (pack of 4)

Mopeka Check Spacers are aluminum spacers that clip to the foot ring of cylinders (20, 30, and 40 lb [5, 7.5, and 10 gal] DOT cylinders).  The spacers provide adequate space for installation of the Mopeka Sensor, and improve wireless range. This is a 4 pack, enough for 1 cylinder.

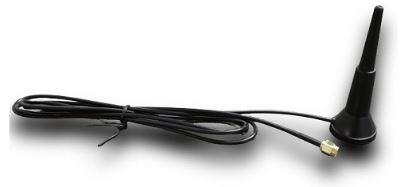

Remote Outdoor Antenna with Magnetic Mount - 4 meters / 13 ft

Remotde Outdoor Antenna with Magnetic Mount

Cat. # MOANT4...$10

Remote outdoor antenna for either your Cellular or BLE sensors (Pro+ or TD40 lines). Use this antenna to increase your Cellular or Bluetooth signal in those hard-to-communicate areas. It will screw onto the same port as the standard antenna.

Remote Outdoor Antenna with Magnetic Mount - 1.5 meters / 5 ft

Remotde Outdoor Antenna with Magnetic Mount

Cat. # MOANT1.5...$10

Remote outdoor antenna for either your Cellular or BLE sensors (Pro+ or TD40 lines). Use this antenna to increase your Cellular or Bluetooth signal in those hard-to-communicate areas. It will screw onto the same port as the standard antenna.





Instructions/Manuals/Videos

Mopeka Pro Check Instruction Manual

Mopeka WiFi Bridge Instructions

Mopeka Pro Plus Installation Instructions

Mopeka TD40 Installation Instructions

Mopeka Pro Check Installation Video

Mopeka Pro Plus Configuration and Installation Video
