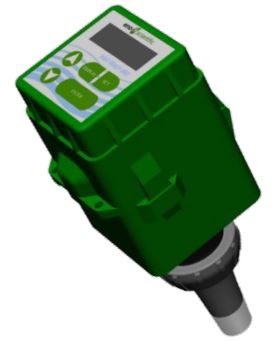

The Well Watch 670 is a semi-permanent well water level indicator that mounts at your well site to provide a constant display of water depths for that well.
These units utilize sound waves and adaptive sensor technology to learn the makeup of a particular well allowing for the most accurate readings.
The Well Watch 670 includes a built-in display with keypad which allows the user to view real time data and to easily control the internal settings. It also has a built-in data logger capable of logging up to 25 million time/date stamped data points. This is the perfect tool to monitor and trend water levels and usage. Utilize this data to prevent over use of a well and save yourself from a potential costly repair from a burned up pump.
These units are easy to install in virtually any well setup. Each Well Watch unit comes with 3 MPT threaded nozzles, 1/2", 3/4" and 1" in diameter. Simply choose the nozzle which fits into the vent hole on your well seal and screw the Well Watch tightly in place. Attachments can be used to angle the units for tight fitting spaces since the Well Watch does not need to be vertical to get a good reading.
Choose from the multiple output options available to work with your application, including RS232, RS485 (Modbus), 4-20mA, 0-5V Analog, and USB. These are a perfect for monitoring remote wells or as a back up in case of a SCADA system crash.
The Well Watch 670 is perfect for all commercial, industrial, municpal systems. The 670 is recommended for long term monitoring projects or Telemetry integration.
FEATURES:
-
SonicSense Technology™
-
Nothing Lowers into the Well
-
No Contamination since the monitor sits on top of your well
-
Easy to set up
-
Accurate readings in seconds
-
Optional Alarm system to warn when well reaches dangerous levels
-
Wireless Remote Display to monitor from the comfort of your home
-
Monitors well levels from every second to once per hour
-
Store up to 25 million time/date stamped log points
-
Download to your computer and graph the results
-
Can monitor from any angle and around corners in well casing
-
Low Cost and Ease of Use
-
Free Technical Phone Support for Well Watch
- Built in LCD display with keypad to view continuous real time data and easily control settings
- Simple installation in virtually any well configuration
- Optional wireless 310 Remote Display with built in data logger capable of storing 25 million time/date stamped log points
- Capability to initiate pump shut off to prevent overuse
- No proprietary software or monthly fees Built in alarm capability in case of emergencies
- Comply with State and Local usage regulations
Click Here for Frequently Asked Questions
Click Here for Well Watch 670 User Manual

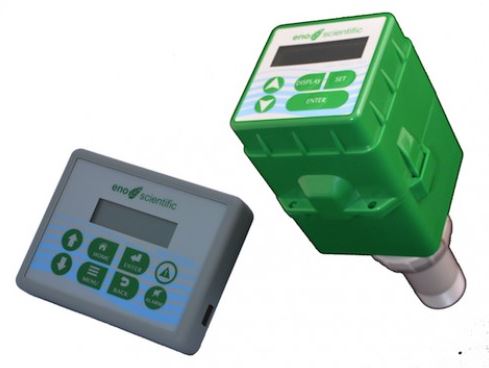

The optional Well Watch 310 Remote Display is compatible with any of the Well Watch models and can be mounted at a separate location, The display can be mounted wirelessly up to 300 ft or hard wired up to 3000 ft away. (Order separately below)
Understanding your well water levels has never been more important than it is today. The Well Watch meters were designed to be a solution for the long term monitoring needs of agricultural, municipal, environmental or production well owner/operators.
The Well Watch 670 monitoring systems are sonic, using sound waves to non invasively measure water levels. This makes monitoring quick, safe and inexpensive. No worries about well contamination. The Sonic Sense sound waves work equally well at any angle and can even travel around corners in the well casing.
To install, simply choose the nozzle which fits into the vent hole on your well seal or sounding tube and screw the Well Watch tightly into place. Attachments can be used to angle the units for tight fitting spaces since the Well Watch does not need to be vertical to get a reading. Each Well Watch meter requires external AC or DC power but for power saving or off grid applications we offer 5W, 10W or 30W Solar Panels.

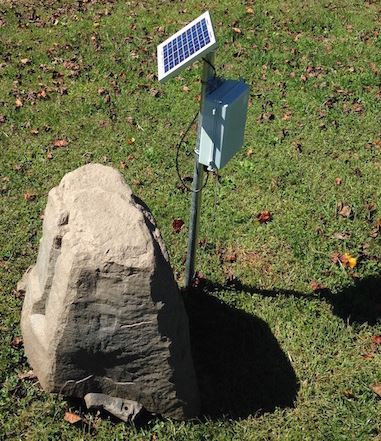

Typical Installation
The Well Watch works equally well at any angle, around corners, and partial obstructions down to 4000ft. It requires little power so it can be operated from AC, battery or solar setup.
Complete with RS232, RS485 (Modbus), 4-20mA output, 0-5V Analog output, 5V alarm output, USB and built in wireless link for use with the optional 310 Remote Display.
SPECIFICATIONS:
POWER:-External Power: 6.5 to 12VDC at 80ma max. Do not exceed 16V. Screw terminals and adapter with 5.5mm x 2.1mm center post positive connector.
MEASUREMENT: Units - English (ft & in) or Metric Resolution - .05 ft (1 cm) Accuracy - .1 ft (3 cm) Range - 10 to 4000 ft (3 to 1200M) Update time - ~1 sec @ 500 ft (150M)
LOGGING: Extended Memory - 2GB nonvolatile flash memory for 25 million data points Automatic Logging Rates - 1 sec to 60 minutes per sample POWER: External Power - 6.5 to 12VDC at 80ma max. Do not exceed 16V. Real Time Clock - Li Ion 3V battery CR2032
ENVIRONMENTAL: Temperature - -10 to 110 F (-20 to 45 C) Humidity - 10 to 90% non-condensing PHYSICAL: Meter Dimensions - 8.25 x 3.5 x 3.5" Probe Tip Dimensions - 1/2", 3/4" and 1" MPT
FEATURES: Display - 2 x 16 character LCD Temperature compensation in unit INPUT/OUTPUT: RS232 RS485 (Modbus) 4-20mA output 0-5V Analog output 5V Alarm output USB Built-in wireless link for use with remote display
ORDER INFO

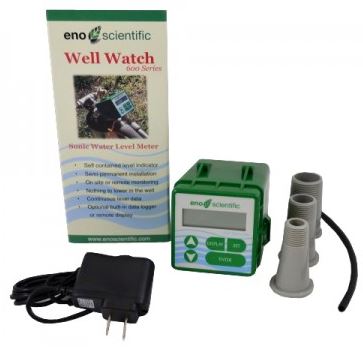

Included with Well Watch 670 kit:
Well Watch Quick Start Guide
3 Nozzles (1/2", 3/4", 1")
Microphone extension tube
A/C Power adapter
1-Year warranty
Well Watch 670 Well Water Level Indicator...#WW670...$6749
--SORRY, TEMPORARILY UNAVAILABLE --

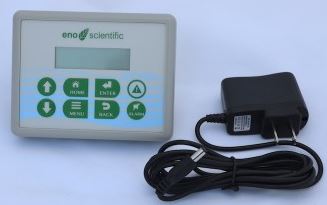

Optional Accessories:310 Remote Display
Optional 310 Remote Display can be wirelessly mounted in your home. This gives you easy accessibility to view real time water levels, control the Well Watch's settings or log data to provide a long term picture or your well's health. The 310 Remote Display has an alarm feature used to alert you to low water levels, helping to prevent overuse and/or costly damage to the pump.optional 310 Remote Display that can be wirelessly mounted in your home. This gives you easy accessibility to view real time water levels, control the Well Watch's settings or log data to provide a long term picture or your well's health. The 310 Remote Display has an alarm feature used to alert you to low water levels, helping to prevent overuse and/or costly damage to the pump. The Well Watch's 310 Remote Display is the perfect companion to the Well Watch 660 water level monitor unit. The 310 display provides continuous readout of water level depths that are being provided by the Well Watch 670. The data can be received through the built in wireless connection up to 300 ft away or by hardwiring the display to the Well Watch. These units also have a built in data logger which is capable of storing up to 25 million time/date stamped log points and can easily download data via USB or remotely through RS232. The 310 Display can provide high/low levels for the past 12hr, 24hr and one week time periods. It also has the ability to warn you to dangerous high/low levels through an audible/visual alarm. Thus helping to prevent overuse of the well and expensive damage to the well pump. They can be wall mounted or set on a desk or table using the built in stand for easy level monitoring. SPECIFICATIONSUSER MANUALORDER INFOWell Watch 310 Remote Display....#WW310....$149--SORRY, TEMPORARILY UNAVAILABLE -- Well Watch Solar Power Kits

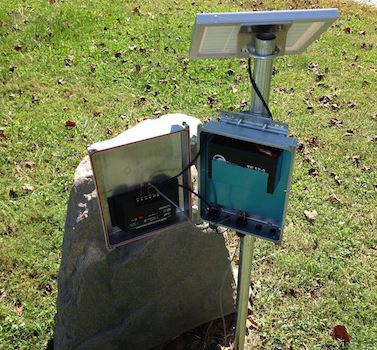

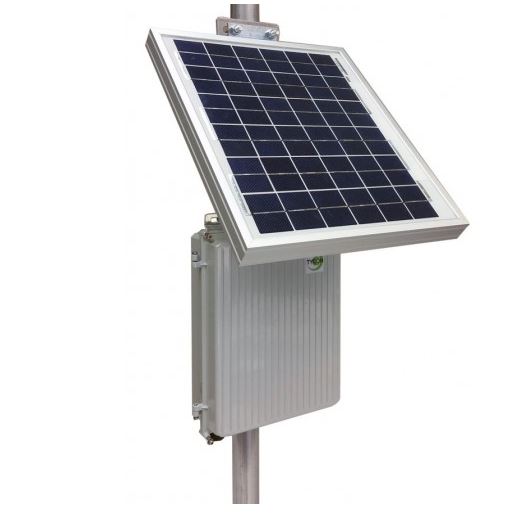

The Well Watch Solar Power Kit offers a complete power solution to off the grid or remote well monitoring applications. The system works best with 6 hours of peak sun per day but has enough reserve to operate the Well Watch on continuous logging for over a week with no sun. The log rate can be changed to lengthen the reserve time to last through a few weeks of cloudy weather. The system is available in 3 sizes, 5W for sunnier locations and 10W or 30W for areas with less peak sun per day. This ensures that all customers have the opportunity to operate the Well Watch system.
• Solar Panel • Die Cast Enclosure • Pole/wall mounting kit with mounting plate • Cable assembly to connect battery to controller • Battery charging controller • 12V battery • Outdoor rated cable assembly to connect solar panel to controller SPECIFICATIONSORDER INFO5W Well Watch Solar Power Kit....#WW5W...$259--SORRY, TEMPORARILY UNAVAILABLE -- 10W Well Watch Solar Power Kit....#WW10W...$349--SORRY, TEMPORARILY UNAVAILABLE -- 30W Well Watch Solar Power Kit....#WW30W...$459--SORRY, TEMPORARILY UNAVAILABLE -- |
|---|
