TEK-603 eco water monitor |
|
|
The TEK-603 Eco Water Monitor is a wireless tank sensor using ultrasound to
measure tanks up to 9.8 ft deep. Ideal for indoor or outdoor tanks in
remote locations up to 500 ft away. The display shows temperature, gallons and percentage of tank volume.
It's also Internet Ready. The optional Broadband Modem can be added to provide Internet monitoring of fluid levels from any web enabled device!
Perfect for heating oil, water tanks, rainwater tanks, waste oil tanks, lubricant tanks and more!*
*(non-acidic/non-caustic/non-pressurized)
FEATURES:
-
All common tank shapes are supported
-
Measurements are shown in gallons and percent to empty
-
Up to 500 ft of distance to the tank
-
Calculates average consumption and cost
-
Historical data can be shown per day, week or year
-
Wireless connection between display and tank
-
Internet ready with optional TEK-608 Broadband Modem (see below)
-
Display Power supply: 110 V power supply adapter with USB plug
-
Sensor can be used on indoor or outdoor tanks
-
Operating Temparature Range(outdoor unit): -10°C - +60°C (14°F - 140°F)
-
Easy installation - the gauge replaces the cap on the tank with the 1-1/2" and 2" BSP multithread adaptor*
*Note: This gauge has both 2"and 1-1/2" BSP threads. Although this gauge will thread into a 2" or 1-1/2" NPT opening, it should NOT be used in any tank where pressure holding capability is at all critical.
|
TEK-603 Eco Water Monitor

Wirelessly measures your tank level and temperature, plus monitors consumption in your home or office, AND on the Internet (Internet Modem sold separately - see ORDER INFORMATION below).

21st Century Fluid Level Monitoring
Purchase the TEK-603 Eco Water Monitor alone for local display, or combine with the TEK-608 Broadband Remote Modem for Internet access to your data
See ORDER INFORMATION Below
USER MANUAL
INSTALLATION INSTRUCTIONS
SEE ORDER INFO BELOW
|
|
Optional TEK-608 Broadband Modem for the TEK-603 Eco Water Monitor Provides Internet Monitoring Capability

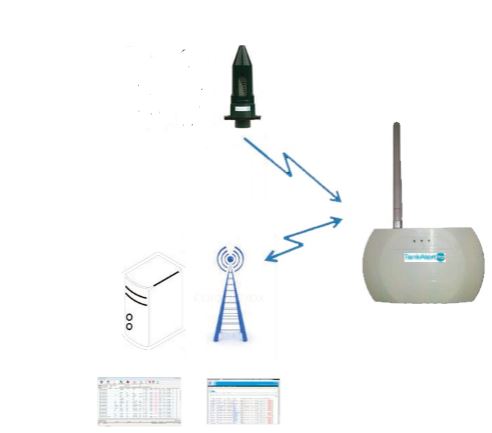

The TEK-608 is a broadband modem that can receive up to 4
tank sensors, and transmit the data to the internet for access on any web enabled device

FEATURES:
-
Enables TEK-603 Eco Water Monitor and other sensors to be monitored via Internet
-
Different sensors can be combined - multiple tank sensors, temperature, humidity, pressure, etc
-
Connects to to broadband modem with RJ-45 cable
(included)
-
Configured remotely
-
Wall mount or desk mount
wireless connection to sensor
-
Easy to install and use
-
Reliable data through existing internet connection
-
No maintenance
-
Requires a monthly access fee ($4/mo.) for displaying the tank content, reporting and sending automated notifications (billed annually)
SEE MORE INFO
INSTALLATION INSTRUCTIONS
OPTIONS AND ORDER INFORMATION
TEK-603 Eco Water Monitor

Item # TEK-603-H2O....$189
Package contents: TEK-603 Sensor and Display unit, 110V power adapter with US plug, User Manual, Gasket, tank size adapter, 2 mounting screws |
TEK-608 Broadband Modem
Add to your TEK-603 Eco-Water Monitor (or TEK-574 Sensor) to provide Internet access to you data. SEE MORE INFO
INSTALLATION INSTRUCTIONS

Item # TEK-608....$169
Package contents: TEK-608 Remote Modem, 110V power adapter with US plug, User Manual, RJ-45 cable
1-Year Tank Monitoring Subscription - Single Tank
ORDER AFTER YOU RECEIVE YOUR TEK-608
Item # TKSUB...$48 per year ($4/mo.)
Please make sure to add the Serial Number of your tank monitor (located next to the barcode of the device), so that subscription can be associated with the correct tank. |
Need a Display at the Tank Only?
TEK-574 Sensor Only

The TEK-574 can be used as a stand alone digital tank level meter. Provides LCD tank level display at the tank. Simple installation.
The TEK-574 can also be paired with the TEK-608 Broadband Modem if internet access to data is desired, or upgrade your TEK-603 to add tank level display at the tank too! SEE MORE INFO
Item # TEK-574...$89
Package contents: TEK-574 Sensor only, User Manual, Gasket, tank size adapter, 2 mounting screws
|
Need Internet Access to your Tank Level Data but Don't Need a Local Display?
TEK-608 Broadband Modem with TEK-687 Sensor (No LCD Display on the Sensor)

The TEK-608 Broadband Modem with TEK-687 Sensor provides Internet access to your tank level data from any web-enabled device. Simple to install and operate.
SEE MORE INFO
INSTALLATION INSTRUCTIONS
Item # TEK-608+687....$189
Package contents: TEK-608 Remote Modem, 110V power adapter with US plug, User Manual, RJ-45 cable and TEK-687 Sensor (same as TEK-574 but has no LCD display on the Sensor)
Requires a monthly access fee ($3/mo.) for displaying the tank content, reporting and sending automated notifications (billed monthly, semi-annually or annually) |
|
|
|
|
|
|
|
|
