TANK ORIENTATION

Which type do you have?

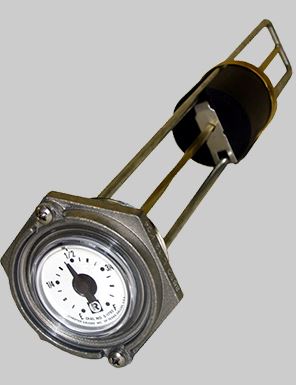

The Fuel Minder iGauge provides liquid level readings of your tank to any internet enabled device. The Fuel Minder iGauge features the Rochester Senior® Spiral Gauge, designed for use in measuring liquid levels in hydraulic, lubricating or fuel-oil storage tanks, and gasoline and diesel fuel levels in stationary, standby and mobile generators.

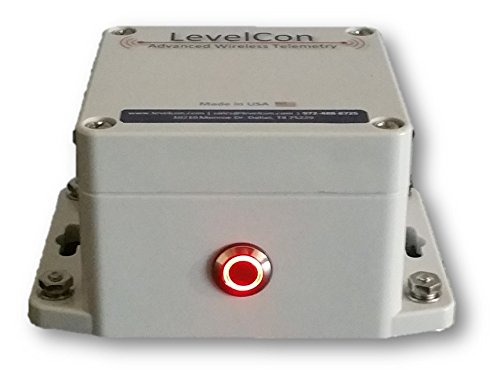

The Fuel Minder iGauge also features  the F100, a wireless tank level and temperature monitor that connects to your home WiFi network

• Check tank and temperature levels straight from your phone, tablet, PC, or any internet capable device
• Easily configure email alerts for low levels and/or fill events
• Status reports and alerts are fully configurable
• Kit Includes a Rochester Senior® Spiral Gauge for the tank, cable with sensor, very high strength mounting magnets, batteries, and the F100 wireless tank level and temperature monitor, including all installation components
• Years of trouble free service with one set of Lithium AA batteries, included
• Simple installation

The Rochester Senior® Spiral Gauge has a 1 1 ⁄2" MNPT tank connection and is suitable for tank pressures up to 25 psig maximum. Designed for top mounting in tanks up to 49" deep (some models are UL listed for flammable liquids.)

Four Easy Steps to Install:

1. Install the Rochester Senior® Spiral Gauge (see Installation Instructions*)

2. Place the F100 on the tank using the included magnet mounts

3. Connect the sensor to the tank and twist on the single water tight connector to the F100.

4. Press the multi-function button twice to enter setup mode and configure the F100 wifi settings from a favorite WiFi enabled device. (See F100 Quick Start Guide)

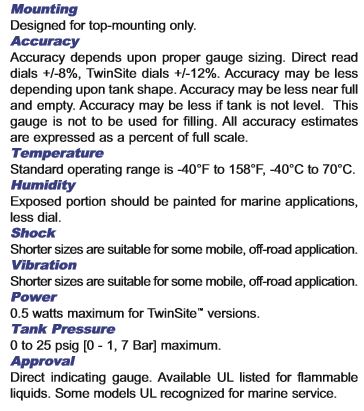

Rochester Senior® Spiral Gauge Specifications:
