F100M Wireless Universal Tank Level Monitor

Check tank levels straight from your phone, tablet, or PC. Easily configure email alerts for low levels and/or fill events. Monitors tank levels for Propane, Fuel-oil, Gasoline, Water, and many other volatile and non-volatile liquids.  Includes very high strength mounting magnets for easy installation and batteries. Simple installation.

Using Cellular LTE, WiFi, or Iridium Satellite, the power efficient F100M is ideal for rough environments and difficult locations. The F100M pairs to limitless sensor technology, ensuring a perfect match to your tank inventory needs.

Utilizing the the extremely efficient CatM1 cellular network or local WiFi, the F100M transmits asset data directly to the LeveLCon secure cloud.

FEATURES:

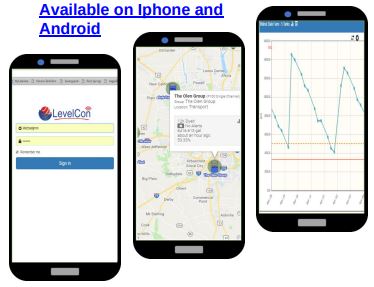

  • Receive your LPG and liquid tank levels, ambient temperature and barometric pressure from any phone, tablet or PC.
  • Status reports and alerts are fully configurable.
  • Years of trouble free service with one set of Lithium AA batteries, included.
  • Never worry that you or you're loved ones have enough fuel to stay warm.
  • Easy Installation
  • Class I Division 1 Group D Certification for hazardous area deployment
  • Requires annual subscription - see ORDER INFO below

Typical Applications

Product level monitoring including fuels, propane, water, lubricants, chemicals, gases, solids

Residential or Industrial Propane level monitoring

Frac Tank monitoring

Backup generator fuel levels

propane tank gauge, centeron, remote propane tank level monitor, lpg tank level gauge, wireless propane gauge, wireless lpg gauge, lpg tank level monitor, wifi propane gauge, cellular propane gauge, f100

Tank level data where you want it, when you want it.


water tank gauge, cistern gauge, wireless water tank level monitor, wireless water tank level gauge, wireless cistern tank level monitor, wireless cistern tank level gauge

propane tank gauge, centeron, remote propane tank level monitor, lpg tank level gauge, wireless propane gauge, wireless lpg gauge, lpg tank level monitor, wifi propane gauge, cellular propane gauge, f100

This is a no maintenance powered up unit with a 5 year battery life from 3x off-the-shelf AA Energizer Ultimate Lithium batteries. The F100M operates globally at temperatures from -20C to 65C.


View the F100M Video

propane tank gauge, centeron, remote propane tank level monitor, lpg tank level gauge, wireless propane gauge, wireless lpg gauge, lpg tank level monitor, wifi propane gauge, cellular propane gauge

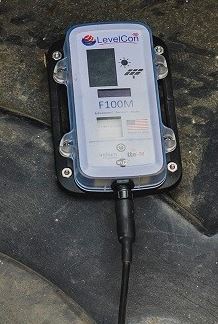

The F100M was designed for quick, simple and seamless installations for single tank applications or a bulk facility network. Encased by a NEMA4 weather tight enclosure, this small footprint design is ideal for any monitoring application. Includes a locking weather proof Chogori connector, and a convenient outer activation button. This power efficient monitor will produce years of reliable and accurate data

f100m, wireless propane tank level monitor, wirless lpg gauge

Compatible with nearly any sensor on the market, we match the contents of your tanks to the proper sensor. The F100M ensures compatibility and performance.

propane tank gauge, centeron, remote propane tank level monitor, lpg tank level gauge, wireless propane gauge, wireless lpg gauge, lpg tank level monitor, wifi propane gauge, cellular propane gauge, f100

water tank gauge, cistern gauge, wireless water tank level monitor, wireless water tank level gauge, wireless cistern tank level monitor, wireless cistern tank level gauge


got gas

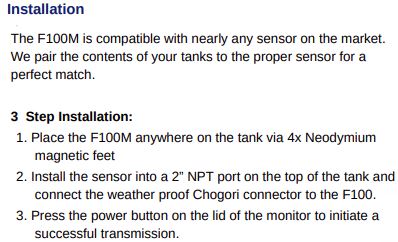

Easy Deployment and Maintenance

The F100M is designed for simple installation on a single tank, as part of a bulk facility network, or used as a multi-tank monitor with RS485 Modbus sensors. The IP67 enclosure eliminates any concern regarding water or other weather intrusion, and the built in LCD allows for easy operation and local control. It’s small size and neodymium magnets allow the device to be mounted securely to about anywhere on the tank.

Ease of Installation

The device design and overall structure was designed to keep installation as simple and fail proof as possible. Installer can simply attach the monitor to any metal tank for a secure and bonded connection via four powerful neodymium magnetic feet built into the base of the enclosure. In situations where one is not working with metal tanks, the enclosure is designed to strap to any vent pipe or simply paired with a any high-quality adhesive to mount the monitor to the vessel. The unit’s low profile, sleek and light weight design makes the F100M the perfect fit to stick to your tank for years

Solar Power

No power at your tanks is no problem for the energy efficient F100M. The unit’s unique self-charging system utilizes a powerful micro-solar panel to harness abundant solar energy, stored to a rechargeable super capacitor for years of maintenance free reporting. In areas where the solar pane may be covered with external elements such as snow, soot and other unforeseeable objects, the monitors fall back 3x AA Ultimate Lithium Energizer battery system automatically kicks in as the main power source, switching back to the solar power once the panel is clean and clear. This solar augmentation provides for greater power longevity, eliminating field maintenance visits. If power is available we have you covered as well, allowing for a 6-36vdc power connection.


Choose the F100M tank level monitoring solution for your Propane Tank, Fuel-Oil Tank or Water/Cistern Tank below

ORDER INFO - F100M for Propane Tanks

Levelcon F100M for Propane Tanks

F100M Wireless Universal Tank Level Monitor for propane tanks.  Approved for Class 1 Div 1 Applications

(Order Hall Effect Sensor with Dial Face and choose subscription service separately to complete your system)

water tank gauge, cistern gauge, wireless water tank level monitor, wireless water tank level gauge, wireless cistern tank level monitor, wireless cistern tank level gauge

F100M Wireless Universal Tank Level Monitor (only).....$429

(Order Hall Effect Sensor with Dial Face and choose Subscription Service separately to complete your system)


The F100M for Propane Tanks includes Hall Effect Sensor and can be ordered with a Rochester Dial Face JUNIOR, for horizontal or vertical tanks, or with a Dial Face SENIOR for horizontal tanks.

Dial Face JUNIOR is 1 7/8" between screw holes, and Dial Face SENIOR is 2 5/16" between screw holes. See ORDER INFO.

dial face

To complete your system choose the appropriate Hall Effect Sensor and dial face for your tank and add the Subscription Service you desire

Hall Effect Sensor and Dial Face

F100M Hall Effect Sensor and JUNIOR Dial Face for HORIZONTAL Tanks....HESensor-F100M....$109

hall effect sensorjunior

horizontal


F100M Hall Effect Sensor and JUNIOR Dial Face for VERTICAL Tanks....HESensor-F100M-V...$109

hall effect sensorjunior

vert


F100M Hall Effect Sensor and SENIOR Dial Face for HORIZONTAL Tanks....HESensor-F100M-SR...$109

hall effect sensorsenior

horizontal


Subscription Service for your F100M system

F100M-Subscription-C..... F100M Subscription - CELLULAR - $10/month billed annually

Annual Subscription

Or

F100M-Subscription-W... F100M Subscription - WiFi - $4.00/month billed annually

Annual Subscription

ORDER INFO - F100M for Non-Volatile Fluid Tanks

Levelcon F100M Wireless Universal Tank Level Monitor for Fuel - Water - Fluid Tanks

water tank gauge, cistern gauge, wireless water tank level monitor, wireless water tank level gauge, wireless cistern tank level monitor, wireless cistern tank level gauge

F100M Wireless Universal Tank Level Monitor (only).....$429

(To complete your system add the HYDROSTATIC TANK SENSOR kit and add the SUBSCRIPTION SERVICE you desire)

water tank gauge, cistern gauge, wireless water tank level monitor, wireless water tank level gauge, wireless cistern tank level monitor, wireless cistern tank level gaugewater tank gauge, cistern gauge, wireless water tank level monitor, wireless water tank level gauge, wireless cistern tank level monitor, wireless cistern tank level gaugef100m j-box

To complete your system add the HYDROSTATIC TANK SENSOR kit and add the SUBSCRIPTION SERVICE you desire

HYDROSTATIC TANK SENSOR kit to complete your system

water tank gauge, cistern gauge, wireless water tank level monitor, wireless water tank level gauge, wireless cistern tank level monitor, wireless cistern tank level gaugef100m j-box


HYD-5 HYDROSTATIC TANK SENSOR
- 5m H2O range, 7m Cable Length, includes 2" NPT bushing mount (or other specified size) and J box for sensor connection.....HYD-5-F100M...$249

Enter Type of Fluid:

Other size bushing mounts available - CONTACT US


Subscription Service for your F100M system

F100M-Subscription-C..... F100M Subscription - CELLULAR - $10/month billed annually

Annual Subscription

Or

F100M-Subscription-W.... F100M Subscription - Wifi - $4.00/month billed annually

Annual Subscription



ORDER INFO - F100M with Hydrostatic Sensor for Class 1 Div 1 Group D Applications

Levelcon F100M Wireless Universal Tank Level Monitor

water tank gauge, cistern gauge, wireless water tank level monitor, wireless water tank level gauge, wireless cistern tank level monitor, wireless cistern tank level gauge

F100M Wireless Universal Tank Level Monitor (only).....$429

(To complete your system add the HYDROSTATIC TANK SENSOR kit and add the SUBSCRIPTION SERVICE you desire)

water tank gauge, cistern gauge, wireless water tank level monitor, wireless water tank level gauge, wireless cistern tank level monitor, wireless cistern tank level gaugewater tank gauge, cistern gauge, wireless water tank level monitor, wireless water tank level gauge, wireless cistern tank level monitor, wireless cistern tank level gaugef100m j-box

To complete your system add the HYDROSTATIC TANK SENSOR kit and add the SUBSCRIPTION SERVICE you desire

HYDROSTATIC TANK SENSOR Kit Class 1 Div 1 Group D IS Rated

water tank gauge, cistern gauge, wireless water tank level monitor, wireless water tank level gauge, wireless cistern tank level monitor, wireless cistern tank level gaugef100m j-box


HYD-5-C1D1-F100M
Hydrostatic Tank Sensor, C1D1 Grp D  IS rated – 0-5 PSI  range, 7m Cable Length, includes 2" NPT bushing mount (or other specified size) and J box for sensor connection...HYD-5-C1D1-F100M... $499

Enter Type of Fluid

Other size bushing mounts available - CONTACT US


Subscription Service for your F100M system

F100M-Subscription-C..... F100M Subscription - CELLULAR - $10/month billed annually

Annual Subscription

Or

F100M-Subscription-W...F100M Subscription - Wifi - $4.00/month billed annually

Annual Subscription

Other Sensor types available - please CONTACT US
