Red Fox®: Waste Liquid Level Gauge

BJ Enterprises Red Fox® Liquid Level Tank Gauge is a direct reading mechanical digital gauge. The Red Fox® displays numbers that INCREASE as the fluid level lowers, indicating ULLAGE, or how many inches from the liquid surface to the top of the tank. (Essentially indicationg how much fluid was used or how much remains to full) For use with oil, waste oil, diesel fuel, antifreeze, water, and other fluids with a low flash point.

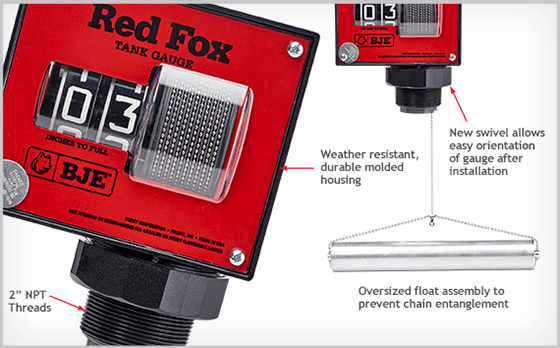

FEATURES:

  • One gauge accommodates tanks up to 99″.
  • Large number display.
  • Molded housing.
  • Direct drive.
  • 2″ NPT thread.
  • Nickel-plated brass chain.
  • 1½” wide Vertical Aluminum Float Assembly rotates to prevent chain entanglement, AND provides easy installation and retrieval
  • For use with oil, waste oil, diesel fuel, antifreeze and most liquids with high flash point.
  • New swivel allows easy orientation of gauge after installation.
  • Oversized Vertical floats with swivel assembly
  • Easy installation
  • Not recommended nor intended for use in gasoline or highly flammable liquids
  • Also available with Horizontal float - CONTACT US

oil tank gauge, float gauge, oil gauge tank level gauge, tank level monitor, ullage, red fox



Red Fox® Digital Liquid Level Gauge Reads Ullage In Inches

oil tank gauge, float gauge, oil gauge tank level gauge, tank level monitor, ullage

Numbers decrease as fluid level rises indicating how many inches are left until the tank is full. For use with oil, waste oil, diesel fuel, antifreeze and other fluids with a high flash point.

oil tank gauge, float gauge, red fox, tank level indicator

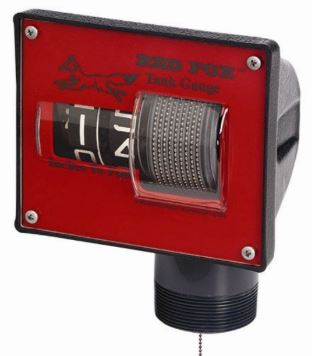

Red Fox® Digital Liquid Level Gauge with Vertical Float


Also Available in Metric (cm) - CONTACT US


Click for INSTALLATION INSTRUCTIONS

ORDER INFO

Red Fox® Liquid Level Tank Gauge with Vertical Float

Order #8566....$199
