Wireless and WiFi Tank Level Monitors

The new PTLevel gauges provide tank level monitoring via internet so you can monitor your level from your phone, computer, tablet or TV! Be alerted at any set point by SMS or email. It is simple to setup in your account. A PTDevices account is free and includes all the needed features for your device. View your usage history over time to see how you've been saving on water, or see when your delivery company delivered.

Perfect for Wells, Cisterns, Sumps, Oil Tanks, Chlorine, Hydrogen Peroxide, DEF, Fertilizer and so much more (Not intended for use in gasoline or other volatile fluids).

PTLevel offers two models to choose from: The Wireless PTLevel and the WiFi PTLevel.

Got multiple tanks?  No problem, multiple PTLevels can be used at the same location!

NO MONTHLY FEES!


PTLevel offers two models to choose from: The PTLevel WiFi and the Wireless PTLevel.

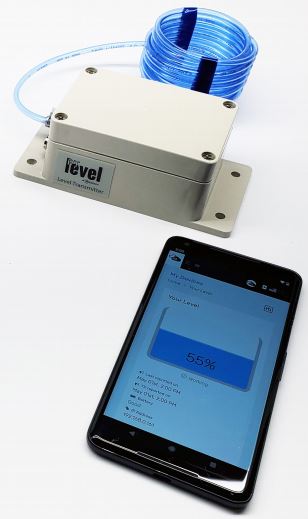

PTLEVEL WiFi

water tank gauge, cistern gauge, wireless tank gauge, wireless tank level monitor, wifi tank gauge, ptlevel, remote reading tank gauge, water tank level meter, tank gauge

If you have a WiFi signal at your tank, then this device is for you. Just plug in the device with the provided power supply, setup the WiFi connection and you’re good to go!

How does the PTLevel WiFi work?

  • The PTLevel is mounted on the top of your tank where it is connected to the provided 13′ of 5/32″ tubing.
  • The other end of that small tubing is then connected to the weighted “Pressure Chamber”.
  • When the Pressure Chamber is dropped into your tank, the liquid pushes up into the chamber and creates an air pocket.
  • That air pocket is then read by the transmitter on a battery saving schedule (adjustable online).
  • Using the supplied power supply and barrel connector, just plug in the device. If you need to run it farther, simply use a low voltage wire to extend the power supply.
  • The data is sent to our online services for you to access.

      PTLevel WiFi FEATURES

  • Communication online using a WiFi connection to the internet - Free online connectivity
  • Powered by a provided low voltage power supply.
  • 13′ of tubing is supplied, but you can request more if needed.
  • Weather proof design. It can be installed outside with no issue.
  • -40°C to 100°C temperature range.
  • Water depth maximum with supplied Pressure Chamber and sensor – 25′. If deeper depths required, please CONTACT US.
  • PTLevel device dimensions – 69mm x 140mm x 51mm.
  • Pressure chamber dimensions – 250mm total height, 91mm base diameter, 26mm base height, 22mm tube OD.
  • 2 Year Workmanship Warranty - IF THE PRODUCT DOES NOT PERFORM THE WAY IT IS ADVERTISED, WE WILL WORK WITH YOU IN ANY WAY POSSIBLE TO GET IT WORKING TO WHERE IT SHOULD WORK
  • 30 Day Guarantee - WITHIN 30 DAYS OF THE PURCHASE, IF THE DEVICE DOES NOT WORK FOR YOUR SCENARIO, WE WILL REFUND THE DEVICE PURCHASE UPON RECEIVING THE DEVICE BACK

PTLevel WiFi Simple Installation

Power the PTLevel - Use the supplied power supply, run a low voltage wire, or use a POE power splitter to power the PTLevel without worries of managing batteries.

Connect the WiFi - Using the simple step by step WiFi connection setup, get the PTLevel connected to the internet through your WiFi connection.

Install PTLevel - Install the PTLevel on the tank, drop the pressure chamber in the liquid, and finally connect the power cable.


Check Tank Levels When and Where You Want

cistern gauge, water tank gauge, tank level monitor, wireless tank level monitor, wifi tank gauge, lowest price wireless tank level monitor, tank gauge, oil tank gauge, oil tank level monitor, remote tank gauge

Your Tank, Your Data on Any Web Enabled Device


cistern gauge, water tank gauge, tank level monitor, wireless tank level monitor, wifi tank gauge, lowest price wireless tank level monitor, tank gauge, oil tank gauge, oil tank level monitor, remote tank gauge

PTLevel offers two models to choose from: The PTLevel WiFi and the Wireless PTLevel.

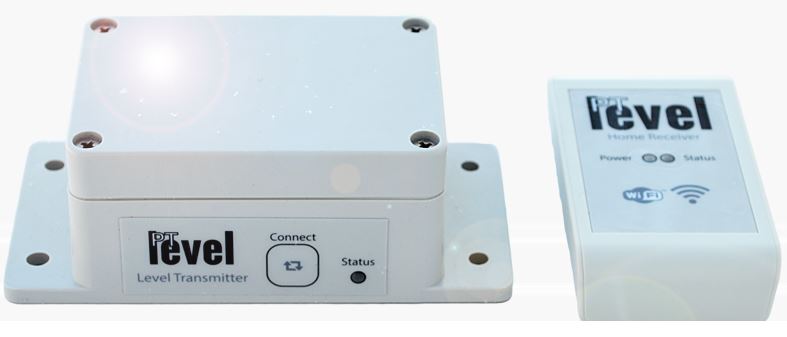

WIRELESS PTLEVEL

water tank gauge, cistern gauge, wireless tank gauge, wireless tank level monitor, wifi tank gauge, ptlevel, remote reading tank gauge, water tank level meter, tank gauge

No WiFi at the tank?  No Problem! Super long wireless range between transmitter and receiver, long battery life on 4 AA batteries, durable and sleek design, and best of all, a SUPER easy and fast installation. Connect the PTLevel to your existing WiFi home signal in just a few minutes. Place the PTLevel transmitter outside on your cistern or tank. 1km line of site range! Sets up in minutes, requires no special tools, connects to your existing WiFi signal.

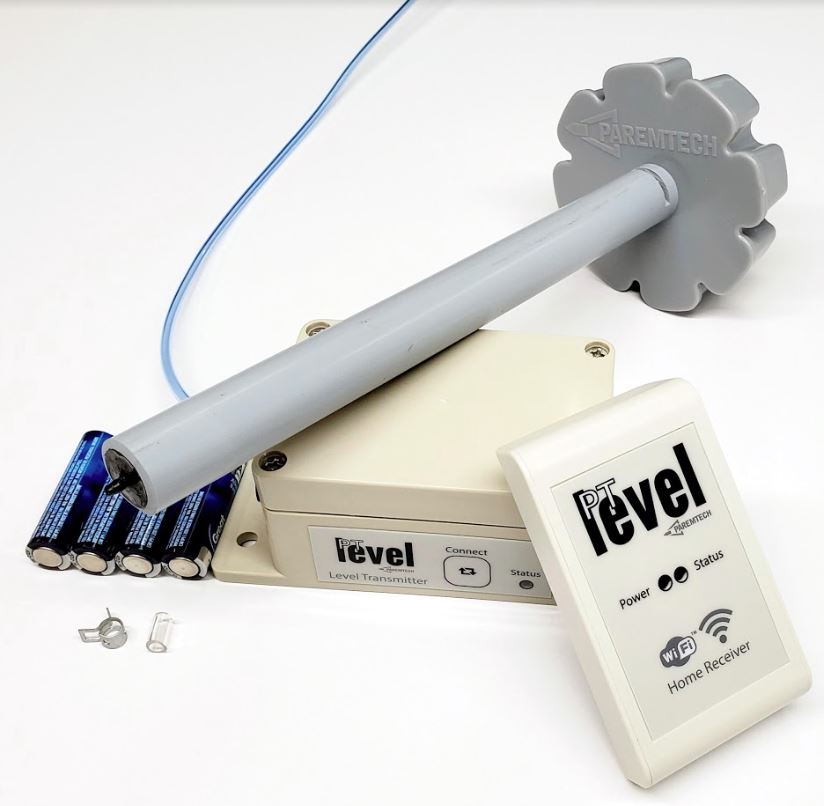

Wireless PTLevel System Includes:

  • PTLevel transmitter
  • PTLevel receiver
  • Power supply
  • 13' of attached tubing
  • Instructions
  • Pressure chamber
  • AA batteries

Wireless PTLevel FEATURES:

  • -40 degrees Celsius design.
  • Weatherproof design.
  • Powered by 4 AA batteries .
  • Long battery life.
  • Long distance wireless range – up to 1km line of site.
  • Internet connected via WiFi – access anywhere, any time.
  • Free online account with many features such as history, multiple alerts via SMS or email, delivery sharing (your local delivery person will get emailed when you are low), and more
  • 1-Year Mfr. Warranty

wireless tank gauge, internet tank level monitor, wireless tank level monitor, oil tank gauge, cistern guge, water tank gauge , water tank level monitor


PTLEVEL DISPLAY SCREEN SHOTS

(both WiFi and Wireless models)

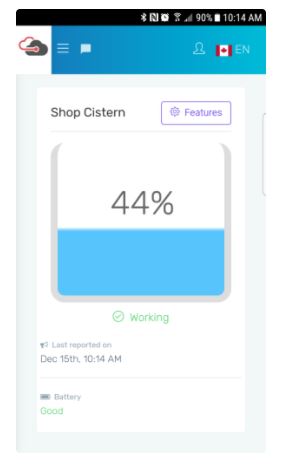

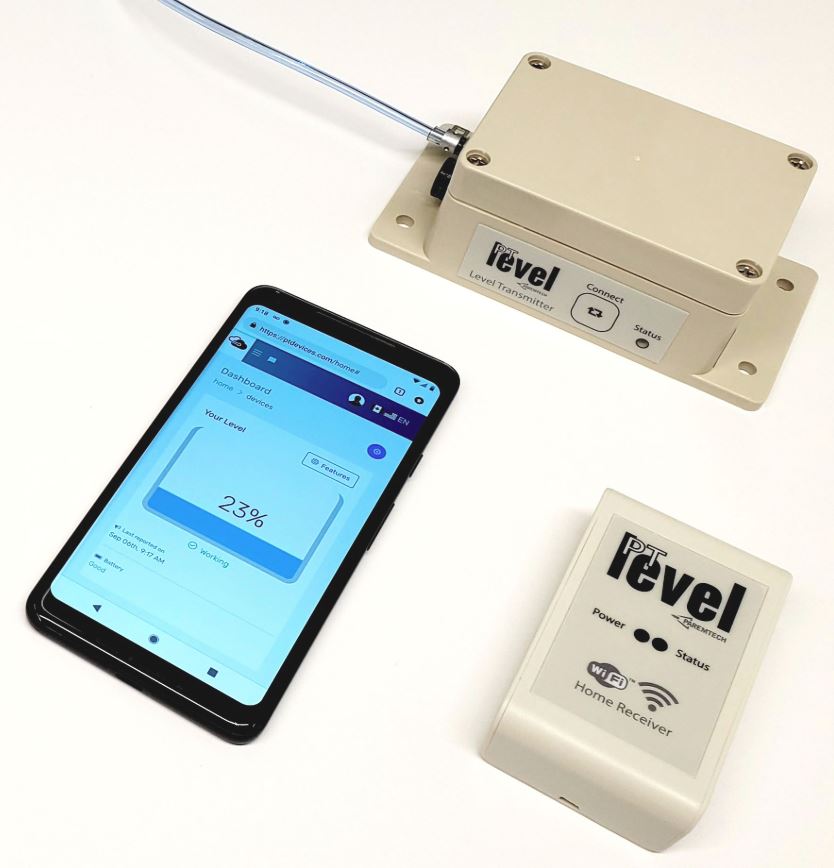

Check tank volume instantly

cistern gauge, water tank gauge, tank level monitor, wireless tank level monitor, wifi tank gauge, lowest price wireless tank level monitor, tank gauge, oil tank gauge, oil tank level monitor, remote tank gauge

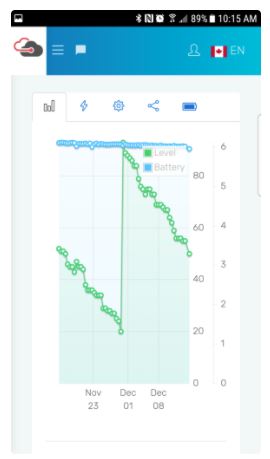

Check usage history

cistern gauge, water tank gauge, tank level monitor, wireless tank level monitor, wifi tank gauge, lowest price wireless tank level monitor, tank gauge, oil tank gauge, oil tank level monitor, remote tank gauge

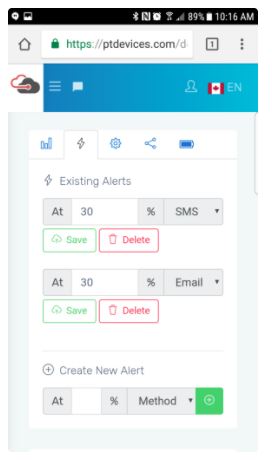

Set Alert Types and Levels

cistern gauge, water tank gauge, tank level monitor, wireless tank level monitor, wifi tank gauge, lowest price wireless tank level monitor, tank gauge, oil tank gauge, oil tank level monitor, remote tank gauge

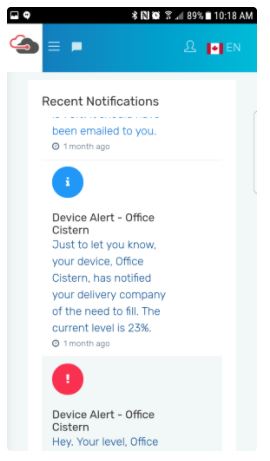

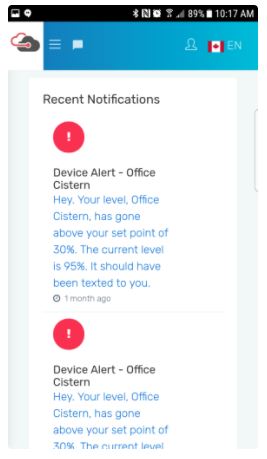

Receive Notifications

cistern gauge, water tank gauge, tank level monitor, wireless tank level monitor, wifi tank gauge, lowest price wireless tank level monitor, tank gauge, oil tank gauge, oil tank level monitor, remote tank gaugecistern gauge, water tank gauge, tank level monitor, wireless tank level monitor, wifi tank gauge, lowest price wireless tank level monitor, tank gauge, oil tank gauge, oil tank level monitor, remote tank gauge

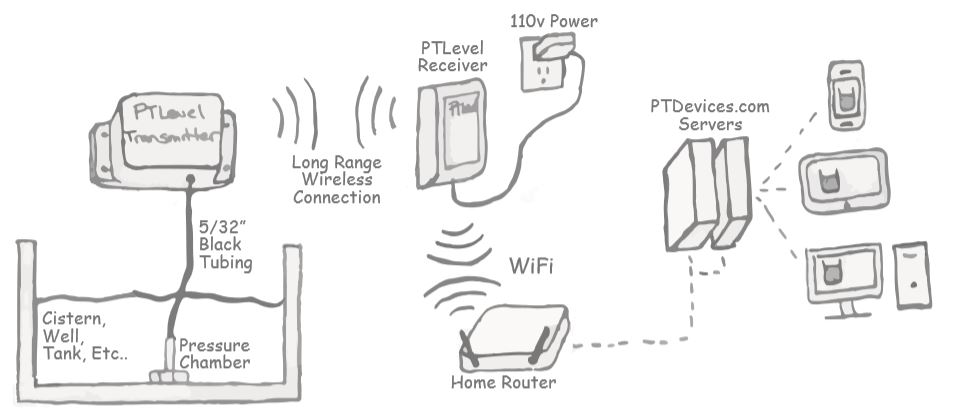

PTLevel System Schematic

cistern gauge, water tank gauge, tank level monitor, wireless tank level monitor, wifi tank gauge, lowest price wireless tank level monitor, tank gauge, oil tank gauge, oil tank level monitor, remote tank gauge


Click for PTLevel Wireless INSTRUCTIONS/INSTALLATION Manual


Click for PTLevel WiFi INSTRUCTIONS/INSTALLATION Manual

Click for PTLevel Wireless SPECIFICATIONS Sheet


PTLevel LOGIN Page


Android App


ORDER INFORMATION

PTLEVEL WiFi

water tank gauge, cistern gauge, wireless tank gauge, wireless tank level monitor, wifi tank gauge, ptlevel, remote reading tank gauge, water tank level meter, tank gauge

PTLevel WiFi Tank Level Monitor

(Use where WiFi is available at the tank)

Special Introductory Offer!

PTLevel WiFi...$149

PTLEVEL WIRELESS

water tank gauge, cistern gauge, wireless tank gauge, wireless tank level monitor, wifi tank gauge, ptlevel, remote reading tank gauge, water tank level meter, tank gauge

PTLevel Wireless Tank Level Monitor

(Use where no WiFi is available at the tank)

PTLevel 2.0 Wireless...$279

ACCESSORIES

PVC Flange and Cord Grip

PVC Flange and Cord Grip- 1" NPT with 1 x 1/2" red bushing and 1/2" NPT cord grip makes installation easier and more secure.

(Note that the factory Pressure Chamber does not fit through the PVC Flange - the tube must be disconnected and reconnected.)

cistern gauge, water tank gauge, tank level monitor, wireless tank level monitor, wifi tank gauge, lowest price wireless tank level monitor, tank gauge, oil tank gauge, oil tank level monitor, remote tank gauge

PVC Flange and Cord Grip

PTLPVC...$13


Extension Tubing

Need longer tubing for your installation?

20 ft. Extension Tubing with Clamps

PTLEXT20...$10


30 ft. Extension Tubing with Clamps

PTLEXT30...$15

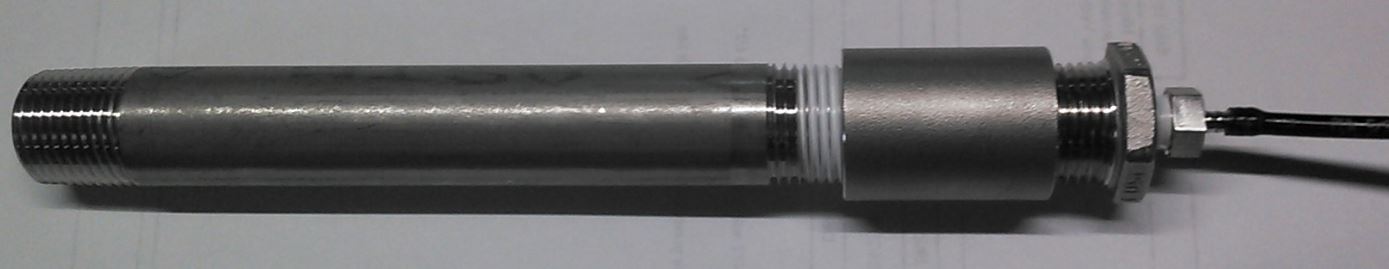

Stainless Steel Pneumatic Pressure Chamber

Prefer a stainless steel pressure chamber for your tank? Simple replacement for factory Pressure Chamber

cistern gauge, water tank gauge, tank level monitor, wireless tank level monitor, wifi tank gauge, lowest price wireless tank level monitor, tank gauge, oil tank gauge, oil tank level monitor, remote tank gauge

Stainless Steel Pressure Chamber

PTLSST........$28

Note:
The stainless steel pressure chamber is typically utilized in conjunction with the compatible PVC Flange and Cord Grip (or just threaded pipe adaptor bushing) that ensures that the chamber is straight up and down…generally an inch or two off the bottom of the tank.  We recommend to align the bottom of the tube with the pump pickup point so the gauge goes to zero just before you start sucking air into your pump.


The SST chamber fits through the flange for easy seasonal maintenance on the PTL system; whereby the air tube needs to be drained every 3months to get rid of extra water accumulating with condensation and micro air leaks in the tube/sensor.


The flange can also just be just the  threaded adaptor bushing if you only have a pipe to access the tank…note the cord grip ties into a 1” npt male PVC bushing which can be mated to a PVC threaded pipe connection that goes into a buried tank for example with a pvc pipe riser coming out of the ground for vent or filling.


This setup also precludes the possibility of debris getting into the tank where the tube enters the tank while preventing a kinked or damaged air tube
