Kreuger
Barrel Gauge - Type B

The Krueger Sentry Barrel Gauge - Type B is a top mounted liquid level gauge that can measure the level of Drums & Barrels. Comes in 55 Gallon, 30 Gallon, and 15 Gallon Models. Will accommodate .75”, 1.5”, or 2” openings. This liquid level drum gauge is made specifically for standing barrels.

The Barrel Gauge Type B is a reliable, swing arm type drum gauge used for measuring all types of liquid levels. Its simple mechanical design promotes durability, minimal upkeep, quick installation, and easy/inexpensive repairs.  Has gallon, liters and 1/8 increment read out

BARREL GAUGE, DRUM GAUGE

For the Standard Model, base construction is an aluminum bushing and galvanized wetted rods with HDPE Floats for the 1.5" and 2" drum gauges, and Nitrophyl Floats for the .75" drum gauge. Other options are available to increase the drum gauge's compatibility with various liquids

STANDARD MODEL FEATURES:

  • Plastic Calibration with Gallon, liters and 1/8 increment read out
  • HDPE Lock Nut
  • Duro Nitrile Gasket
  • Aluminum Bushing
  • Galvanized Steel Rods
  • Nitrophyl Floats or HDPE Floats (The .75” model comes with a black Nitrophyll float.)

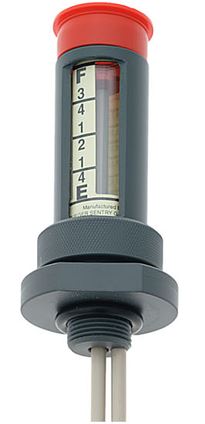

Barrel Gauge Type B

barrel gauge, drum gauge

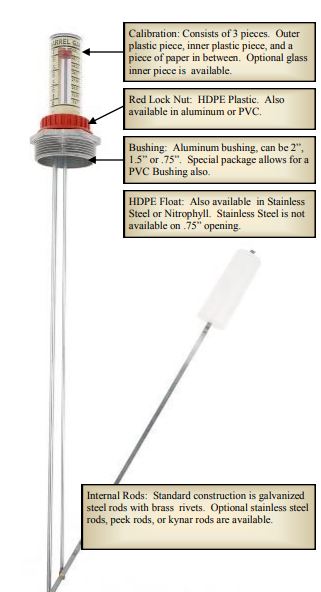

Barrel Gauge Components

barrel gauge, krueger sentry, drum gauge

Installation Instructions:

When installing, unthread the red nut and remove the calibration. Insert the gauge into the barrel. Fix the push rod in a full or empty position, and then thread in the gauge. Be sure the arrows on the bushing are facing away from walls and obstructions. Re install the calibration and red nut.

Instructions for Operation:

The top of the red indicator is an indication of your approximate fuel level in your tank. Once installed, you simply view the calibration to monitor your tank level. Indicator is calibrated in eighths of a tank on one side, and quarters of a tank on the other as well as Gallons and Liters.


AVAILABLE OPTIONS

Need a remote reading tank level display?

LED At A Glance

krueger sentry, alarm gauge, tank alarm, oil tank monitor, tank level monitor, oil tank alarm

Turns the Barrel Gauge into a wired remote reading gauge giving your Barrel gauge remote reading capability. CLICK HERE for more info.


How about a high or low level alarm?

Direct or Remote Mount Alarms

krueger sentry, alarm gauge, tank alarm, oil tank monitor, tank level monitor, oil tank alarm

Turn your Barrel gauge into an audible Hi or Lo level alarm. Audible/Visual alarms mount directly to the gauge, or can be remotely wired and provide your choice of overfill or low level warnings.  CLICK HERE for more info.


Made In The USA


Kreuger Sentry Barrel Gauge - Type B

barrel gauge, drum gauge

The Krueger Sentry Barrel Gauge - Type B is made specifically for standing barrels. 55, 30, and 15 gallon drum models are available.  Multiple materials of construction are available to accomodate nearly any type of liquid.


ORDER INFO*

Barrel Gauge Type B STANDARD MODEL

barrel gauge, drum gauge

This model comes with plastic calibration, plastic locking nut, galvanized rods, and HDPE float. (The .75” model comes with a black Nitrophyll float.)

Item # TYPEB...$69 (all models)

Select Drum Gallon Size and Tank Opening Size

Choose Drum Gallon Size
Choose Tank Opening Size

See Below for OPTIONAL MATERIAL PACKAGES


OPTIONAL MATERIAL PACKAGES

Barrel Gauge Type B STAINLESS LEVEL 1 - S1 - This model comes with plastic calibration, plastic locking nut, aluminum bushing, stainless rods, and HDPE float. (The .75” model comes with a black Nitrophyll float.)

Item # TYPEBS1...$99 (all models)

Select Drum Gallon Size and Tank Opening Size

Choose Drum Gallon Size
Choose Tank Opening Size

MORE INFO


Barrel Gauge Type B STAINLESS LEVEL 2 - S2 - This model comes with aluminum bushing, stainless rods, and stainless Float. (.75” fitting not available)

Item # TYPEBS2...$99 (all models)

Select Drum Gallon Size and Tank Opening Size

Choose Drum Gallon Size
Choose Tank Opening Size

MORE INFO


Barrel Gauge Type B All STAINLESS LEVEL 3 - S3 - This model comes standard with glass calibration, aluminum locking nut, stainless bushing, stainless rods, and stainless floats. (.75” fitting not available)

Item # TYPEBS3...$189 (all models)

Select Drum Gallon Size and Tank Opening Size

Choose Drum Gallon Size
Choose Tank Opening Size

MORE INFO


Barrel Gauge Type B ALL PLASTIC MODEL - PB

barrel gauge, drum gauge

This model comes standard with Glass Calibration, PVC Gauge Guard, PVC Bushing, PEEK Plastic Rods, HDPE Plastic Float.

Item # TYPEBPB...$169 (all models)

Select Drum Gallon Size and Tank Opening Size

Choose Drum Gallon Size
Choose Drum Opening Size

MORE INFO


AVAILABLE ACCESSORIES

Aluminum Gauge Gaurd

gauge guard

Ultimate damage resistance.

Protective Cover that replaces the red locking nut providing protection from physical damage and weathering damage. Facilitates fire inspection approvals.

Aluminum lock nut (above) is built right into this part

Added durability for your sight gauges.

Order # ALG...$39


Aluminum Lock Nut

krueger sentry, alarm gauge, tank alarm, oil tank monitor, tank level monitor, oil tank alarm

Replaces the red lock nut for added durability

Order # ALN...$10


Glass Calibration

barrel gauge, drum gauge

The internal piece of the calibration becomes glass. Provides protection from heat, fumes, weathering, and facilitates fire inspection approvals.

Order #-GLC...$12


*Barrel gauges are made to order.  Processing time is 2-3 weeks.
