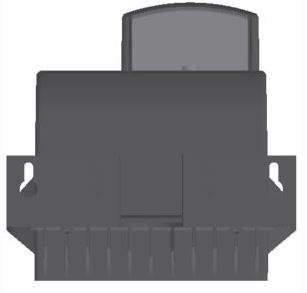

TEK-643 GSM Modem/Logger For Propane or Liquids

The TEK-643 GSM Modem/Logger offers a cost-effective way to monitor propane tanks or hazardous liquids and flow rates remotely.

The TEK-643 transfers the data through the cell network to our tank monitoring application where all of the data can be seen online through a browser. The unit comes also with a built-in GPS receiver, that allows monitoring of the location of the device.

The TEK-643 can connect Rochester Gauges to monitor propane tanks, or can also use hydrostatic probes which are used for larger tanks and caustic liquids. The unit comes with magnets at the bottom, which makes it easy to mount on the side of a metal tank, or can also be mounted through two loops for screws. The unit is pre-configured and is equipped with a SIM card that sends it’s data to our tank monitoring online application.

The unit does not have a local display.

TEK-643 requires a
subscription fee of $4 USD/month (billed annually), which includes the SIM card and the data fee, as well as using the monitoring website which shows history, sends alarms for low or high levels via email and text messaging.


FEATURES:

  • Remote Propane Tank Monitoring or FuelFluid Tank Monitoring
  • Supports: Rochster R3D/Twinsite Senior/Junior

propane tank level monitor, wireless propane tank level monitor, propane tank gauge, wireless propane tank level gauge, wireless propane tank level monitor, LPG tank level gauge, LPG tank level monitor, wireless LPG tank level monitor, wireless LPG tank gauge

  • Supports: Hydrostatic probes 0 - 5 vdc
  • For fixed and mobile applications
  • Tank size is only limited by the sensor capability
  • Reports local temperature, GSM RSSI (Received Signal Strength Indication), and battery level
  • Email notification in Alarm states
  • Simple installation
  • Long battery life
  • Remote re-configurability

The Future of

propane tank level monitor, wireless propane tank level monitor, propane tank gauge, wireless propane tank level gauge, wireless propane tank level monitor, LPG tank level gauge, LPG tank level monitor, wireless LPG tank level monitor, wireless LPG tank gauge

Only at THE FUEL MINDER STORE™


TEK-643 GSM Modem/Logger

propane tank level monitor, wireless propane tank level monitor, propane tank gauge, wireless propane tank level gauge, wireless propane tank level monitor, LPG tank level gauge, LPG tank level monitor, wireless LPG tank level monitor, wireless LPG tank gauge


Specifications

  • Great temperature range of operation: -30°C – +55°C (-22°F – 131°F)
  • Highly configurable server reporting interval from every 2 hours to once per month
  • Protection: IP68 (outdoor)
  • Weight 350 grams (12 oz)
  • Dimensions (130mm/5.1in x 125mm/4.9in x 61mm/2.4in)
  • ATEX Zone II certified and IECEX/Hazloc equivalent
  • Optional External Antenna can be mounted
  • Tanks--Fixed, Mobile, Vented, Pressurized, or Underground-- Tank size limited only by the capability of the sensor connected
  • Programmable Alarms
    -High level
    -Low level
    -Rate of level change (fill or drain)
  • LPG/Propane tank dial-gauge position measurement -
    Rochester R3D/Twinsite Senior/Junior
  • Pressure sensor based vented tank liquid level monitoring -
    Kerosene, Diesel, Gasoline
    Oils/Waste Oils and Other hazardous/non hazardous fluids
  • Utility meters/Flow meters
    -Pulse output accumulation and reporting
    -Absolute encoder serial output protocols
  • Pressure sensors from various manufacturers operating from 5V supply may be connected. 0V to 5V ratiometric or programmable compensated reduced span (other than 0-100%)

propane tank level monitor, wireless propane tank level monitor, propane tank gauge, wireless propane tank level gauge, wireless propane tank level monitor, LPG tank level gauge, LPG tank level monitor, wireless LPG tank level monitor, wireless LPG tank gauge


Click for more TEK-643 Specifications



ORDER INFORMATION

For Liquid Level Monitoring

Select the TEK-643 GSM Modem/Logger, Then Choose Your Hydrostatic Sensor Below to Complete Your System

propane tank level monitor, wireless propane tank level monitor, propane tank gauge, wireless propane tank level gauge, wireless propane tank level monitor, LPG tank level gauge, LPG tank level monitor, wireless LPG tank level monitor, wireless LPG tank gauge

Item # TEK-643....$279


Choose Your Hydrostatic Sensor

hydrostatic sensor, tank level gauge, fuel tank gauge, waste oil gauge, DEF tank gauge


Standard Grade Tank Level Sensor

Choose Sensor Cable Length
Type of Fluid: Oil, Water etc.

Industrial Grade Tank Level Sensor

Choose Sensor Cable Length
Type of Fluid: Oil, Water etc.

1-Year Tank Monitoring Subscription - Single Tank

Item # TKSUB...$48 per year ($4/mo.)

For Propane Tank Level Monitoring

TEK-643 GSM Modem/Logger with Hall Effect Sensor - 6 ft. cable length (for Propane Tank Remote Ready R3D Dial Face)

propane tank level monitor, wireless propane tank level monitor, propane tank gauge, wireless propane tank level gauge, wireless propane tank level monitor, LPG tank level gauge, LPG tank level monitor, wireless LPG tank level monitor, wireless LPG tank gaugepropane tank level monitor, wireless propane tank level monitor, propane tank gauge, wireless propane tank level gauge, wireless propane tank level monitor, LPG tank level gauge, LPG tank level monitor, wireless LPG tank level monitor, wireless LPG tank gauge

TEK-643 with Hall Effect Sensor

Item # TEK-643H....$379


Need a dial face for your TEK-643 LPG Monitor?

propane tank level monitor, wireless propane tank level monitor, propane tank gauge, wireless propane tank level gauge, wireless propane tank level monitor, LPG tank level gauge, LPG tank level monitor, wireless LPG tank level monitor, wireless LPG tank gauge

If you don't already have a compatible Remote Ready R3D dial face on your propane tank - SEE BELOW TO ORDER


1-Year Tank Monitoring Subscription - Single Tank

Item # TKSUB...$48 per year ($4/mo.)



Need a dial face for your TEK-643?

propane tank level monitor, wireless propane tank level monitor, propane tank gauge, wireless propane tank level gauge, wireless propane tank level monitor, LPG tank level gauge, LPG tank level monitor, wireless LPG tank level monitor, wireless LPG tank gauge

If you don't already have a compatible R3D dial face on your propane tank, then you will need this dial. The Hall Effect Sensor for the TEK-643 will connect to this dial face.

Dial Face For The TEK-643 Propane Tank Monitor

Dial Face For The TEK-643 Propane Tank Monitor -Vertical Tank

JUNIOR-(see below)

Order #RS-228DF-V
$13.99

Dial Face For TEK-643 Propane Tank Monitor -Horizontal Tank

JUNIOR-(see below)

Order #RS-228DF-H
$13.99

Dial Face For The TEK-643 Propane Tank Monitor -Horizontal Tank

SENIOR-(see below)

Order #RS-228DF-HSR
$13.99

BE SURE TO CHECK THE SIZE OF YOUR DIAL FACE--see measurements:

juniorsenior
