petro-meter
Model 40 Type W Overfill Alarm

The ideal high level warning device for your tank!

The Model 40 Overfill Alarm is designed to warn of tank level overfills in any type of tank or vessel. The tank may be installed above or below ground in the vertical or horizontal position. Due to the versatility of this alarm the Model 40 may be used for various applications ranging from small waste oil tanks to large bulk facilities. The Model 40 Type W is suitable for outdoor mounting of control box (weatherproof box).

FEATURES:

  • ALARM SILENCING CIRCUITRY FOR INTERNAL AND/OR EXTERNAL AUDIBLE DEVICES
  • INCLUDES AUXILLIARY CONTACTS FOR ACTUATING A REMOTE HORN OR VISUAL ALARM-(200w max.)
  • SELF DIAGNOSTIC CIRCUIT, INDICATOR LAMP, AND HORN TEST MODE
  • AUTOMATICALLY RESETS - HYDROSTATIC PRINCIPLE USES NO MOVING PARTS
  • STEEL NEMA 4 ENCLOSURE & EXPLOSION PROOF PRESSURE SWITCH
  • 95dB PIEZOELECTRIC HORN
  • IDEAL FOR ANY LIQUID STORAGE APPLICATION
  • WEATHERPROOF
  • MADE IN THE USA

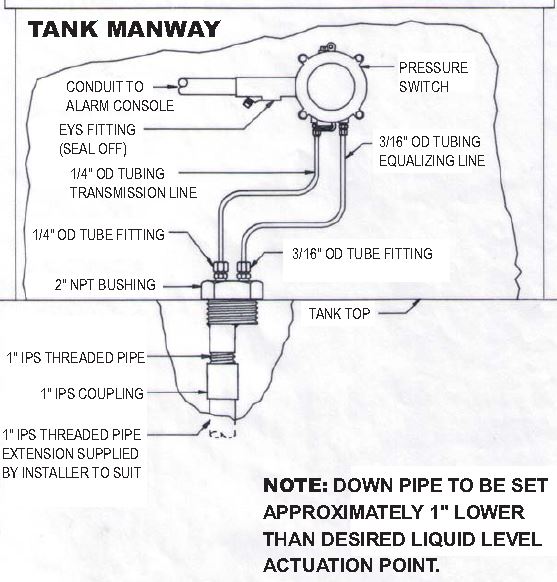

Overfill Alarm Tank Assembly Detail

overfill alarm schematic



How does it work?

The tank overfill system is fully automatic, has no moving parts or electricity within the tank and operates on the principles of hydrostatics. The sensing device for the alarm system is an open ended air bell and equalizing line that is installed at the top of the tank. This device (Tank Assembly Unit) is connected to a pressure switch via ¼” and 3/16" O.D. tubing.

As a rising liquid level covers about ¾” of the air bell, the increase in pressure of the trapped air activates the pressure switch which in turn activates an audible and visible alarm.

The audible alarm is silenced by a pushbutton silencing circuit and the visible alarm automatically resets when the liquid level drops below the air bell. An alarm test pushbutton permits verification that the alarm circuits function correctly.

The System Consists of the Following:

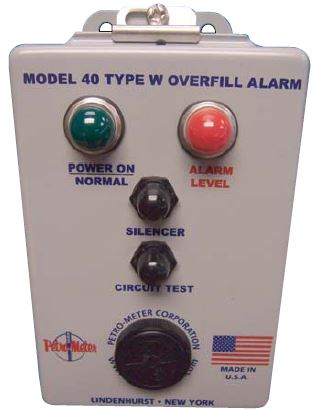

overfill alarm box

The Alarm Unit: Consists of a control box complete with 2 status lights (Green/Normal- Power on; Red/Alarm), audible horn, relay, silencer and test pushbutton switches and printed circuit board.

Pressure Switch and Tank Assembly

Pressure Switch: Explosion-proof and weatherproof switch intended to be mounted at the tank top. Connected electrically to the alarm box by 3 wires and pneumatically to the tank by transmission and equalizing lines.

Model 41 or 42 Tank Assembly Unit: A) Model 41 Tank Assembly Unit includes a 9" downpipe. B) Model 42 Tank Assembly Unit includes a 1" NPT coupling for a length of pipe to be added to whatever length necessary to meet user’s desired actuation level. This downpipe is not provided. The user will need to obtain a length of downpipe to be set approximately 1" lower than the desired liquid level actuation point.

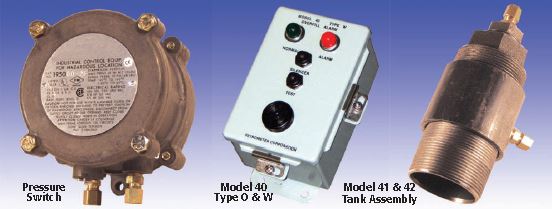

Overfill Alarm System Components

system components



Overfill Alarm System Detail

system detail



Petro-Meter Model 40 Type W Overfill Alarm System with Model 41 Tank Assembly (includes 9" downpipe)

ORDER # 40-TYPE-W-CB-41



Petro-Meter Model 40 Type W Overfill Alarm System with Model 42 Tank Assembly (downpipe not included)

ORDER #40-TYPE-W-CB-42
