AFRISO DIT 10

DIT 10 Digital Tank Contents Indicator
For Water

Product Description

Afriso Digital tank contents indicator DIT 10 for water

Specially suitable for continuous level measurement in rainwater tanks and cisterns. For liquid levels from 900 to 4,000 mm.

The hydrostatic level measurement system consists of a display unit with a digital display, a submerged probe, a connection cable (5 m long) and the complete mounting accessories. A 3.6 V lithium battery is used to power the electronic system so that no external power supply is required. The "Push-To-Read" function assures that the measured value is only displayed when the button is pushed. This results in a service life of the battery of approximately five years.

The 4-digit, 12 mm high LCD display is designed to enable reading of the measured values even under adverse light conditions. In addition, it features a convenient set of symbols for maximum user friendliness. The system always calculates the total volume so that that the unit can be chosen as desired.



cistern gauge, tank contents gauge, water tank gauge, watyer level monitor, water level gauge

DIT-10 COMES WITH:

  • Control unit with digital display
  • 5 m connection cable to probe (can be extended up to 10 m)
  • Moisture-proof junction box
  • Submersible probe with 6m submersible cable
  • Screw connector kit G1 x G1½ x G2
  • Mounting kit for for withdrawal flange (PG 9 gland)
  • Wall mounting
  • For water, fuel oil EL, L, diesel fuel, and biodiesel

Made in Germany

INSTRUCTION MANUAL

DIT10 BROCHURE

Afriso DIT-10

cistern gauge, tank contents gauge, water tank gauge, watyer level monitor, water level gauge

Displayed Values: Liters, m³, percent, and liquid level in mm

DIT 10 is suitable for use in cisterns and tanks with a filling level from 0.9 to 4 m. No tank chart values need to be entered since all standard tank shapes are stored in the device. Comprehensive additional liter scales are no longer required. The pressure measuring cell obtains a high measuring accuracy of +/- 1.5% FL.

DIT 10 provides a menu system for maximum ease of use. The "Push-To-Read" function assures that the measured value is only displayed when it actually needs to be read, thus assuring a service life of the included 3.6 V lithium battery of approx. 5 years.

Even under adverse light conditions, the 7 mm LCD display ensures that the litre or cubic meter values are easy to read. An external power supply is not required.

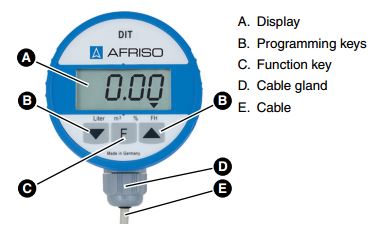

Control Unit

cistern gauge, water tank gauge, water tank level monitor

Functions: Push-to-read, selection of units, calculation of total volume

Measuring range: 0/400 mbar (5.80psi)
Display: 4-digit, 12 mm high LCD 7-segment display with additional symbols

Measuring accuracy: ±1.5 % FS

Supply voltage: 1 x lithium battery 3.6 V (included)

Battery Service life: approx. 5 years

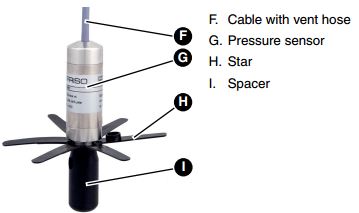

Submersible Probe Pressure Sensor with Spacer

cistern gauge, water tank gauge, water tank level monitor

Housing: Stainless steel 304
Cable: PVC, 6 m with breather tube
Diaphragm: Stainless steel 316
Seals: FKM (Viton)
Spacer: POM, PE


ORDER INFO

(6-WEEK LEAD TIME)

Afriso DIT- 10 Digital Tank Contents Indicator for Water- complete kit

Order # 52150..........$359
