the fuel minder II™
Fuel Minder II Remote Oil Gauge System: 5 Year Parts Warranty




Fuel Minder II™ is a complete kit to replace all existing gauges or for new tank installations. Provides remote fuel-level reading anywhere in your home or business.

Fuel Minder II™ Kit Features:

  • The Fuel Minder II™ comes with float assembly, calibrated, and ready for installation into the tank, and includes gauge, wiring and power cord.
  • Can be used for both fuel and water.
  • Provides highly accurate level measurement for a wide variety of applications, including those in severe environments.
  • Stainless steel construction
  • Fully insulated to protect against voltage inside the tank.
  • ChooseVertical 275 or 330 gal. oil tank (42" float length) or,
  • Horizontal 275 or 330 gal. oil tank (26" float length)
  • Custom length floats also available -Contact Us!

Fits 2" or 1 1/2" NPT tank openings for easy installation!



OPTIONS For Fuel Minder II

Need TWO GAUGES to read the same tank? Dual readout capability is now available for the Fuel Minder II! Put one gauge in one room and the other gauge in a different room. Just select the Dual Gauge option in the ORDER INFORMATION page




INSTALLATION INSTRUCTIONS

CLICK HERE


ORDER INFORMATION

CLICK HERE




Fuel Minder II Sending unit

The Fuel Minder II

Choice of Gauge Styles

chrome gauge

Easy read chrome gauge on white wall plate

brass gauge

Deluxe brass gauge on oak wall plate

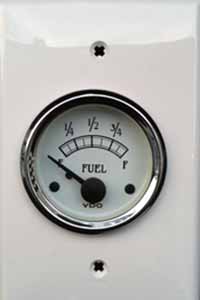

vdo chrome

Deluxe chrome gauge on white wall plate

New!

digital gauge

Now Available-Digital Gauge on white wall plate. Reads 0-99% fuel remaining







Fuel Minder II Assembly

Tools Needed:

  • Flat head screwdriver
  • Wire cutters/strippers
  • Channel lock pliers
  • 2 3/8" hole saw or keyhole saw
  • Staple gun for small gauge wire
  • Measuring tape
  • Vise grip pliers

Fuel Minder II comes complete with:

  • UL listed power supply, power board, polyethylene mount, mounting screws, spare fuse, electric work box, 60 ft. of hookup wire, and installation instructions.

Installation note: clearance above the tank needed for installation of the sending unit is approximately half the length of the sender--for example, a 42" sender requires about a 21" clearance above the tank.

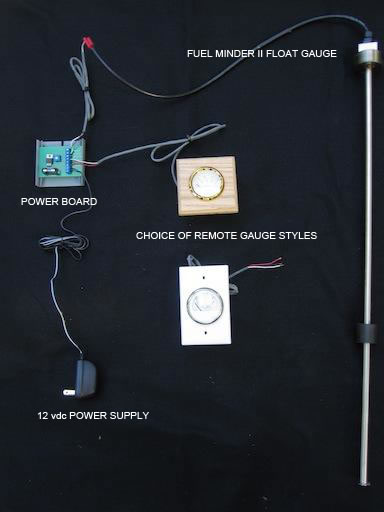

Fuel Minder II Assembly

Your order comes pre-wired with test leads as shown. Simply replace the test leads with the appropriate length you need!
